22-01-2061, Molex, KK 254 Female Connector Housing, 2.54mm Pitch, 6 Way, 1 Row, Корпус разъема

Molex KK Range of 2695 Series Housings

This range of Series 2695 Connector Housings feature a 2.54 mm pitch and form part of the KK Interconnect system from Molex, which provide a simple and economical way to make multipole connections to printed circuit boards. When fitting the terminals into the housings it is essential that the Molex insertion tool is used for the correct fitting of these terminals. Please see engineering note for more details.

Features and Benefits

• 2.54 mm pitch
• Wire to board connections and fittings
• Natural (white) colour
• Single Row
• Housings 22-01-2xxx have friction lock ramps
• Housings 22-01-3xxx have friction lock ramps and polarizing ribs

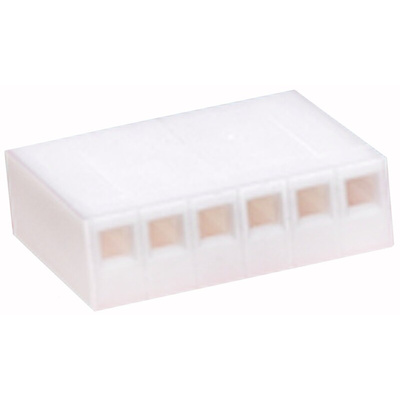

Molex Connector Housing, 15.8mm Length, 12.7mm Width - KK 254 Series - 22-01-2061

Lock down a crimp terminal to your PCB using this connector housing from Molex. It encloses a contact so you can attach it to your board for safe and secure signal transmission. With six contacts in this single-row unit, you've got the right device to set up a multi-pole electrical connection. It's a cinch to fit into small setups, thanks to compact external dimensions of 15.8 (L) x 12.7 (W) x 4.82mm (D).

Features & Benefits

• Pitch size of 2.54mm for the neat assembly of small conductors
• Durable nylon housing is insulating to prevent electric shocks

Applications

• Control panels
• Server rooms
• Gaming consoles

What crimp terminals can I use with this housing?

This housing has enough room to accommodate crimp terminals from Molex's 2759 and 4809 KK ranges, such as the 30 to 22AWG option (172-9178).
