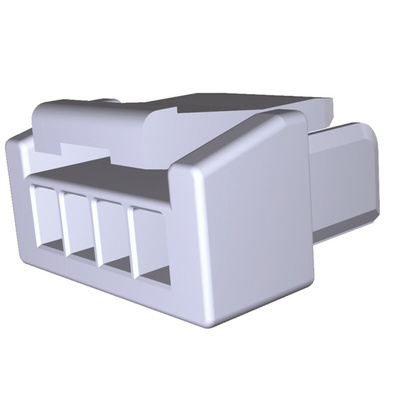

504193-0400, Molex, Micro-Lock Female Connector Housing, 1.25mm Pitch, 4 Way, 1 Row, Корпус разъема

Micro-Lock 1.25 mm Receptacle Housings - Molex

A range of Micro-Lock 1.25 mm Receptacle Housings available in single or dual rows. The material of these Micro-Lock 1.25 mm Receptacle Housings is UL94 V-0 rated.
For Micro-Lock 1.25 mm Contacts see stock number 822-8079 .

1.25mm Molex Micro-Lock

The Molex Micro-Lock 1.25 mm pitch sub-family has a maximum current rating of 1.5 A. The design of the Micro-Lock range makes them suitable for many applications where space and contact assurance are important considerations.The guard walls and detent features of the Micro-Lock range housings and headers ensure that correct alignment is achieved to prevent pin damage on mating. The lock arrangement comprises an outer thumb latch with one or two locking points depending on size.

Micro-Lock 1.25 Wire to Board Connector Single Row Receptacle Housing - Drawing

Micro-Lock 1.25mm Pitch SMT Wire-to-Board Positive Lock System - Brochure

Datasheet

Line Drawing
