MIKROE-1581, MikroElektronika mikroBUS Bluetooth, Colour Sensing, GPS, GSM, Proximity, Thunder Detection, Wi-Fi, ZigBee Shield

Arduino UNO click shield mikroBUS™

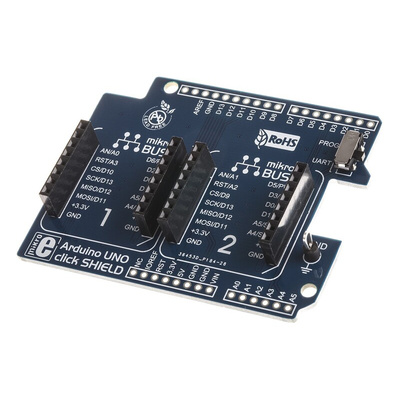

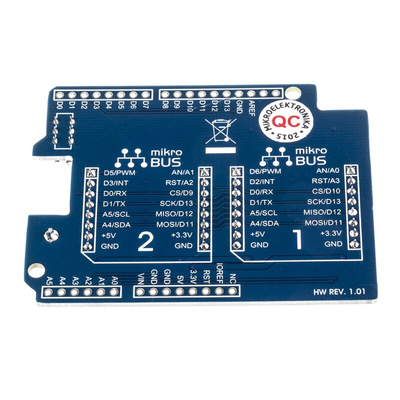

The MIKROE-1581 from MikroElektronika is an Arduino UNO click shield. It is an extension board which comes in a shield design, so it sits directly on top of your Arduino board. The MIKROE-158 provides you with access to an ecosystem of over 75 different click boards, each offering different functionality. Therefore opening up the possibilities of the Arduino UNO board.

How does it connect to click boards?
The Arduino UNO click shield houses two mikroBUS host sockets which provide easy connection to the click board range from MikroElektronika.

Is it just the Arduino UNO that it works with?
No, the MIKROE-158 can be used with any Arduino-compatible board.

What’s on-board?
2 x mikroBUS host sockets
Single headers: 1x10 and 1x6
Arduino connector
Power supply: 3.3V or 5V

What are click boards?
Click boards are a range of modules from MikroElektronika which feature all sorts of technology. They provide straight-forward way of adding functionality to your microcontroller board.
Categories include:
Sensors
Wireless Connectivity (i.e. WiFi, Zigbee and Bluetooth)
Displays
Human Machine Interface
Motor Control
Audio
Power Management

Note

Click board comes with the header strips soldered.

Click mikroBUS™ Shields

A variety of click Shields allowing the use of MikroElektronika Click accessory modules with other MPU development platforms.

click Shield for Arduino datasheet

mikroBUS Socket Standard Specifications
