MIKROE-1577, MikroElektronika MPU IMU Click

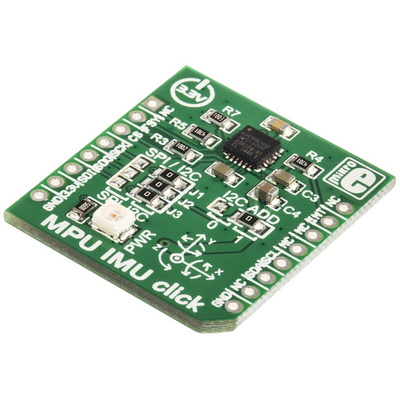

MPU IMU click mikroBUS™

The Click accessory modules plug into the MikroBUS sockets in MikroElektronika microcontroller development boards. MPU IMU click has an MPU-6000 device that combines a 3-axis gyroscope, 3-axis accelerometer and a DMP (Digital Motion Processor) on a single chip.

MPU-6000 6-axis motion tracking device
User programmable gyroscope and accelerometer
DMT supports 3D MotionProcessing and gesture recognition algorithms
Communication: serial SPI or I2C
Power supply: +3.3Vdc
LED power indicator

Note

Click board comes with the header strips soldered.

Click mikroBUS™ Sensor Boards

MikroElektronika has designed a range of boards to add new functions and enhance the development of your applications using the mikroBUS™ pinout standard socket. All in one click!
Click™ boards can add a range of sensing, Bluetooth, Wi-Fi, extra memory, UART communications, audio and much more functionality to your designs. Some boards also act as extensions for development platforms such as the Beaglebone, Arduino Uno and Raspberry Pi.
