3323-50-05PCB, Stadium IGT Capacitive Push Button Switch, Momentary ,Illuminated, Blue, Green, Red, 6 → 24V dc, Сенсорный выключатель

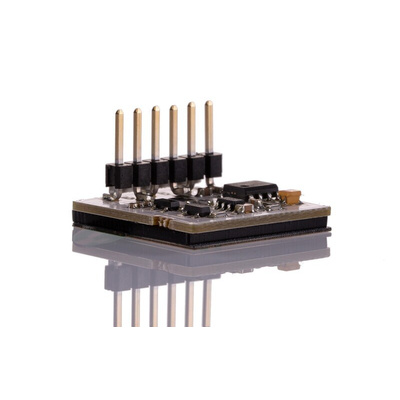

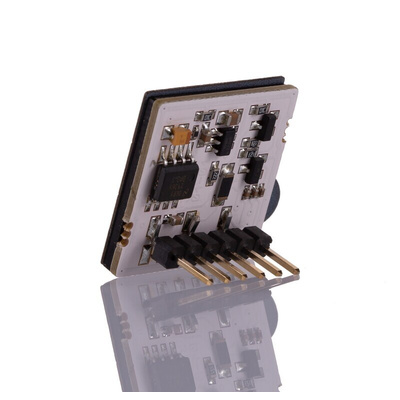

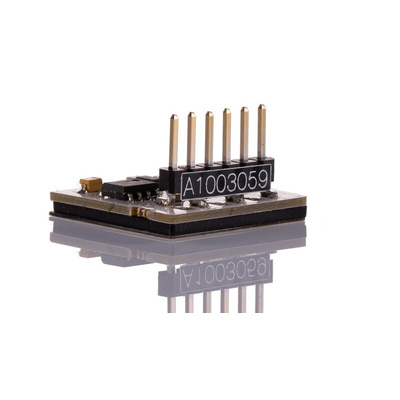

Stadium IGT Capacitive Touch Switch

The Stadium IGT capacitive touch switch is a high tech, illuminated switch. It has a revolutionary design that eliminates the need for panel cut-outs and provides ingress protection. Any glass, clear acrylic, plastic, or similar panel sheet can be printed with the desired design and this unit simply sticks to the back. The switch works through the panel giving a complete and uniform RGB illumination. As the switch works through the panel, there is no need for any panel cut-outs. It is ideal for medical applications as you can wipe the panel clean with disinfectants (make sure that the print is compatible) without worrying about corrosion of switch seals. As long as the panel is sealed to the rest of the enclosure, then ingress protection is no longer an issue.

Features and Benefits

Non-latching, solid-state switch output
Cable assembly available separately
Suitable for panel thickness up to 7mm
Adjustable touch sensitivity
Momentary switch operation
Minimum input supply voltage is 6VDC
Maximum input supply voltage is 24VDC
Output type is solid state
Case colour is brown

Applications

Marine monitoring equipment
Medical equipment
Defence systems
Safety and alarm panels
Professional audio and broadcast equipment
Agriculture services
Building services
Automation

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

SICS 3323-54 Datasheet
