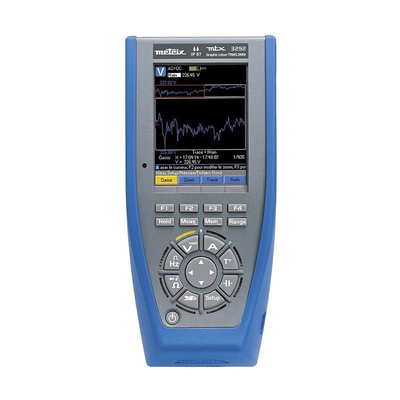

MTX3292B-BT, Metrix 3292 Handheld Digital Multimeter, True RMS, 100A ac Max, 100A dc Max, 1000V ac Max, Мультиметр

MTX3292-BT and MTX3292B-BT Series (ASYC IV) Recorder-Multimeter (LV version)

This portable graphical colour multimeter with digital display provides direct measurements of the main electrical quantities. This innovative design ensures that it is compact, rugged, leakproof and comfortable to hold. The major advantages lie in the product's HMI, the advanced measurement functions and the measurement assistance provided.

Large backlit colour graphical LCD, 320 x 240 pts (70 x 52 mm)
Graphical display, monitoring, storage, specifications on 4 measurement levels (1 main and 3 secondary) simultaneously
Digital switch with lighting of main function keys (8 positions)
Storage: 1000 measurements
DC, AC and AC+DC voltage
DC, AC and AC+DC current
Frequency
Resistance and continuity
Diode test
Temperature with Pt100 / 1000 and K / J TC
Protection: IP67
Communication: IR / USB

Standards

IEC 61010-1, Cat III 1000 V, Cat IV 600 V, EN61326-1

Supplied with

4 x Ni-MH rechargeable batteries 2400 mAH 1.5V, 2 x cables 1.5 m long (1 x red, 1 x black), Red CAT IV 1 kV test probe, Black CAT IV 1 kV test probe, USB optical cable + SX-DMM software, User's guide on CD ROM and Startup Guide on paper.

Datasheet MTX3292/MTX3293

User's Manuel MTX3292B/MTX3293B
