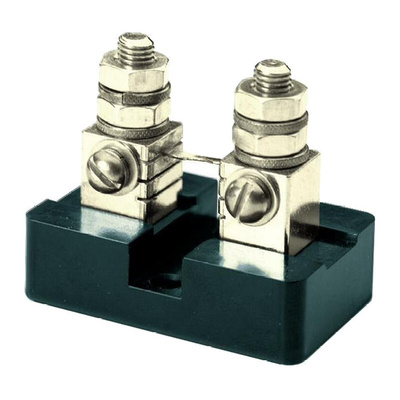

3020-01102-0, Murata Power Solutions Brass-Ended Shunt, 300 A Max, 50mV Output, ±0.25 % Accuracy, Шунт

50mV Base-mounted DC Shunts

50mV base-mounted current shunts are designed for measuring dc currents from 5A to 1200A. These precision shunts connect directly to MPS’s DCA5-20PC Series of dc ammeters. Installation is straightforward: simply connect the load circuit to the shunt’s threaded studs and the shunt’s mV Kelvin-outputs to the digital ammeter’s input terminals.
All models feature a rugged phenolic base that provides 750V isolation to the shunt’s brass terminals, allowing for direct attachment to metal surfaces.

Rated output from 50mV by maximum load
High presision (±0.25% accuracy)
Manganin sensing element
Suitable for DCA5-20PC series of dc ammeters, e.g. stock-no. 810-3318
