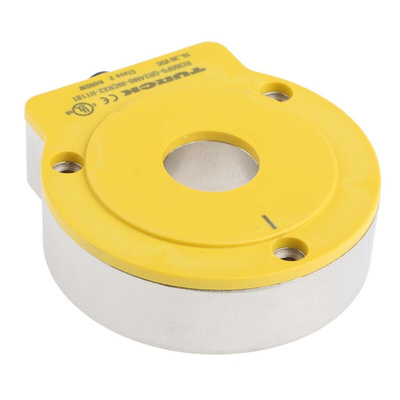

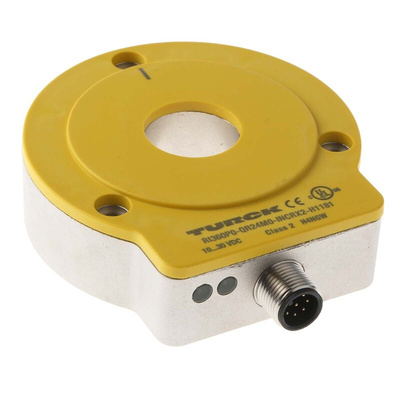

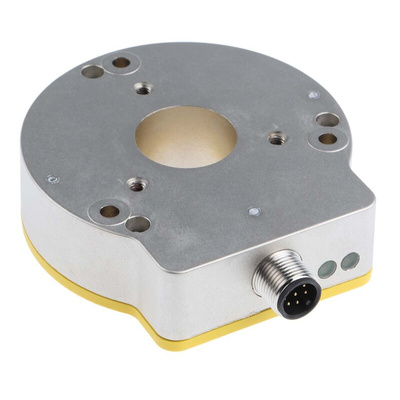

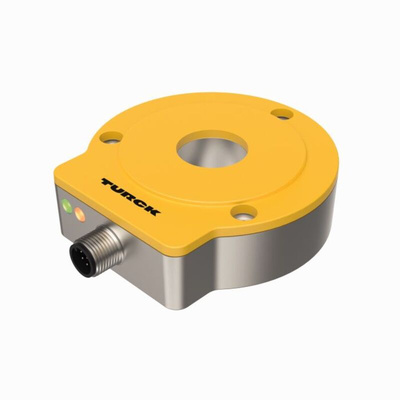

Ri360P0-QR24M0-INCRX2-H1181, Turck Incremental Incremental Encoder, 1024 ppr, Push Pull Signal, Hollow shaft Type, 20mm Shaft, Энкодер

RI-QR24 Contactless Inductive Encoder

The innovative design of the Turck RI-QR24 absolute inductive encoder offers precise contactless rotation measuring and maximum protection against mechanical wear-and-tear, without the need for springs or double bearings. Users also benefit from the range of mounting accessories available, which enables the flexible application and process connection of the encoder. The various positioning elements and aluminium protective rings can adapt the encoder for shaft diameters from 20mm to 6mm.

Compact and rugged housing
SSI output
25-bit, Gray coded
SSI cycle rate: 62.5 KHz…1 MHz
Single or multiturn mode, data frame length as well as bit coding settable via PACTware with programming box USB-2-IOL-0002 and adapter cable

Turck Encoder, IP69K Rating, 200kHz Switching Frequency - Ri36 Series - Ri360P0-QR24M0-INCRX2-H1181

To keep track of shaft movement in your industrial machinery, turn to this rotary encoder from Turck. It uses an incremental measuring principle, meaning it offers high-accuracy information about the linear or angular distance moved. Thanks to the push-pull output type, the voltage produced means you can use the unit as a sinking or sourcing output. This rugged piece of kit is fully potted for resistance to vibration and shocks, making it well-suited to challenging settings. For flexible mounting options, positioning elements and aluminium protective rings can adapt this versatile encoder for shaft diameters between 6 and 20mm.

Features & Benefits

• 1024 pulse per revolution rate produces precision readings
• Immune to EMI for reliable results around electronic equipment
• Compatible with extreme conditions courtesy of its wide operating temperature range of -25°C to +85°C

Applications

• Robotics systems
• Logistics and warehousing
• Manufacturing assembly lines

Can this product cope with getting wet?

Absolutely. An IP69K rating shows this robust device is waterproof and sealed up tight against high-temperature, high-pressure jets from all directions. You can use it with confidence in areas where it's likely to come into contact with liquid.

Turck Absolute Rotary Encoders

Contactless Encoder Data Sheet

TURCK QR24 Non-Contact Encoders Video

Additional Information

Catalogue - Ri-QR24 Contactless Encoder

Manual - Ri360P0-QR24M0-INCRX2-H1181
