LCM-25, MEAN WELL LED Driver, 6 → 54V Output, 25W Output, 1.05 A, 350 mA, 500 mA, 600 mA, 700 mA, 900 mA Output,, Драйвер светодиодов

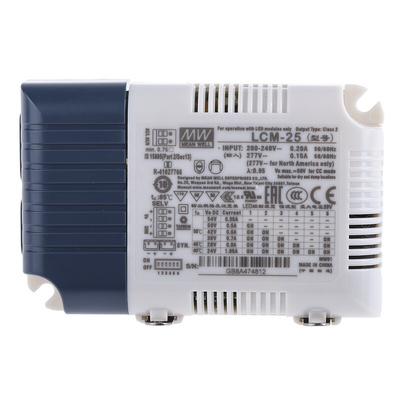

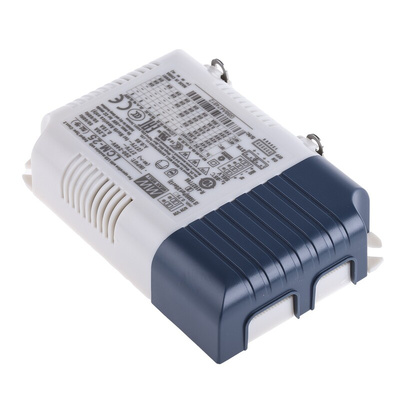

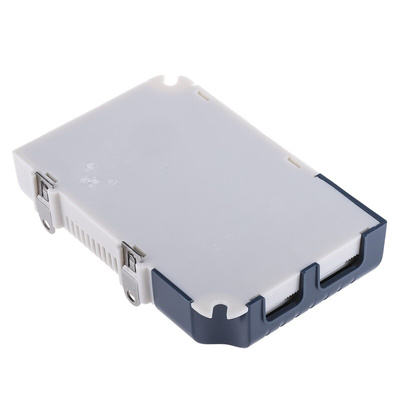

25W Constant current LED Power Supply LCM-25 series

The Mean Well LCM-25 series of constant current LED drivers fulfil the needs of intelligent digital dimming applications. The LCM-25 is designed with built-in 2 in 1 dimming function, 0∼10Vdc and PWM signal. This LED driver provides efficiency up to 86% and can be cooled by free air convection from -30 to +60°C ambient temperature. The LCM-25 is a low profile, plastic enclosed power supply, with input and output connections located on the same side of the LED driver, allowing system designers to easily install the unit where space is limited. The LED driver accepts 180 ∼ 277Vac input and has built in PFC function, observing the harmonic current limitation per EN61000-3-2 Class C. The LCM-25 also possesses 2kV heavy industry level surge immunity capability between line and neutral, following the related luminary requirements.
Ideal applications of the LCM-25 series of LED drivers are in LED commercial lighting, LED office lighting and indoor LED decorative lighting.

Output current level selectable by DIP switch
180∼277VAC input range
Built-in active PFC function
Short circuit and over temperature protection
Cooling by free air convection
Fully insulated plastic enclosure
IP20 rated
Class II power unit, no FG
Built-in 0∼10VDC and PWM signal dimming function
No load power consumption ˂0.5W
Power supply synchronization function up to 10 units

Approvals

PFC / UL / CUL / ENEC / CB / CE
