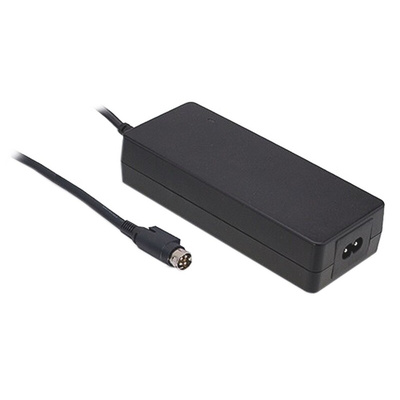

GSM120B15-R7B, MEAN WELL Power Brick AC/DC Adapter 15V dc Output, 7A Output, Блок питания

120W ErP Single Output Switch Mode Desktop Power Supply Medical - GSM120B Series

The Mean Well GSM120B series feature high efficiency and low power consumption. This AC-DC Green Medical Adaptor complies with international medical safety regulations and also possesses a low leakage current ˂100μA, 91.5% high efficiency and low no load power consumption ˂0.15W, which means it can fulfil the demands of “patient contact” medical applications. The GSM120B series also complies with level V energy saving regulations, such as ErP step 2 and EISA 2007. This Mean Well desktop power supply features 80 to 264Vac full range input and 12 to 48V different output voltage options, to fulfil various medical equipment. The GSM120B is a class II power unit, without earth ground pin and enclosed by UL94V-0 rated flame retardant plastic case. These Medical power supplies have global safety certificates for UL, CUL, TUV, CB, FCC and CE, which guarantee the safety for different applications, such as medical equipment requiring low leakage current, portable medical equipment, home healthcare equipment and any electrical systems that require low no load power consumption.

80∼264 VAC full range input
IEC60601-1 3rd edition compliant (2 x MOPP)
Low leakage current ˂100μA
No load power consumption ˂0.15W
ErP step 2 (Level V) compliant
Meet EISA 2007 (Energy Independence and Security Art)
2-pole AC inlet IEC320-C8
High efficiency up to 91.5%
Fanless design, cooling by free air convection
-30 to +60°C working temperature
Short circuit, Overload, Over voltage and Over temperature protection
Fully enclosed UL 94V-0 flame retardant plastic case
Class II power unit, no FG
LED indicator for power on
Optional lock type DC plug

Standards

ANSI/AAMI ES60601-1 / ES60601-1-11, TUV EN60601-1, 60601-1-11

Approvals

PFC / UL / CUL / TUV / CB / FCC / CE

GSM120B Series Data Sheet
