RS PRO Thermostats, 24 h, 7 days, +5 → +35 °C

Wireless Programmable Thermostat Kit with RF Receiver Plug

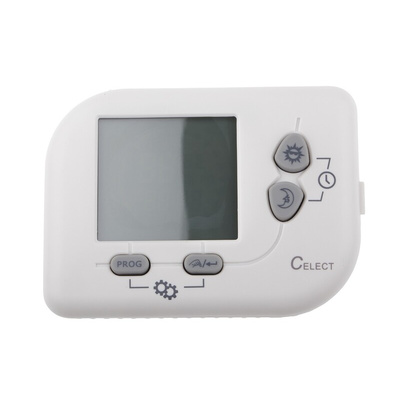

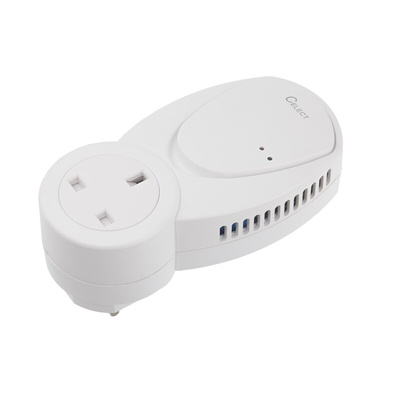

This Wireless Programmable Thermostat Kit can be used to control individual areas, designed to be used with portable heating appliances. This thermostat is separating its functions into two units, the receiver Plug Socket and Control Centre, which serves as a user interface and temperature sensing/controller. You can put the Control Centre in your required room and it can read and control the temperature of the living area while the Receiver is situated besides the heating appliance. This unit will control numerous Receiver Plug Sockets as individually built in RF Value will be RF Address matched with Transmitter. Additional Plug socket can be purchased separately, see accessory link.

Link with the Receiver via 868MHz RF. Control distance 20M open site
LCD display with Backlight
24 hours, 7days programming
Comfort and Economy Temperature setting
8 sets of default programs and 8 sets of editable programs
Anti-freezing protection
Low battery indication
Power source Control Centre 2 AAA Alkaline batteries (Not Included)
Receiver 240VAC±13A 50/60H
Relay contact 13A/240VAC
Frequency band 868MHz
Room temperature setting range 5°C -35°C
Accuracy: 0.5°C ∼ 1.0°C

Installation Instruction Manual

RS Pro Datasheet
