RS PRO Thermostats, 10A, 230 V ac, +5 → +35 °C, Термостат

RS PRO Non-Programmable Wireless Thermostat

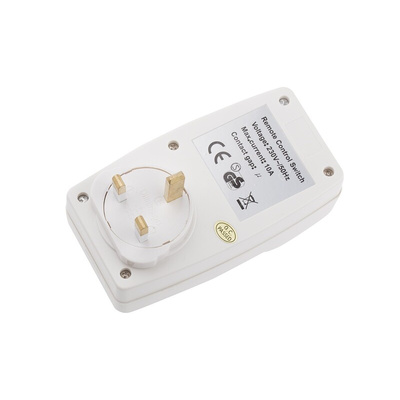

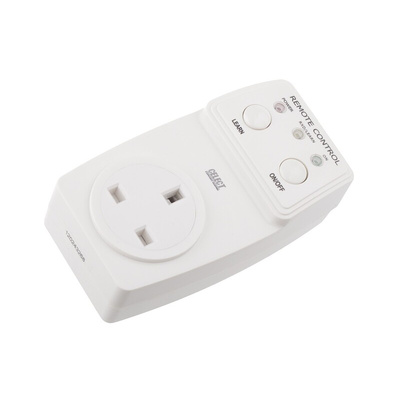

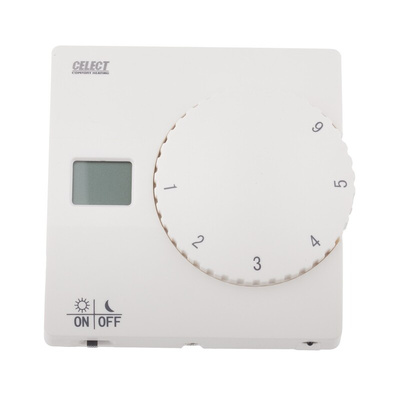

This Wireless non-programmable Thermostat Kit can be used to control individual areas, designed to be used with portable heating appliances. The Transmitter unit is a battery powered room thermostat that offers the advantage of an easy to use setting dial, plus the convenience of an LCD to display the Temperature. It only requires a two-wire connection to the Receiver. The design of this thermostat utilises a micro-processor which as well as providing accurate temperature control, also drives a small LCD display which displays actual room temperature which changes briefly, to show setting temperature, whenever the setting knob is adjusted. Additional Plug socket can be purchased separately, see accessory link.

Features and Benefits

• Optional Economic Operation or Comfort Operation by switch


• Transmitter power has battery back-up; the receiver can bear 16A current Voltage


• Individual RF ADDRESS CODE to avoid interference


• Room temperature easy read out by Mini LCD display, without backlight saves energy


• The big control knob is easy to understand and adjust


• Optional temperature display of Celsius or Fahrenheit scale


• Compressor delay option for cooling selection


• Low battery indication


• Power source Control Centre 2 AA batteries (Not Supplied)


• Receiver 230VAC±10Amp 50/60H


• Relay contact: 10A/250VAC


• Frequency band: 433MHZ


• Room temperature setting range: 5°C -30°C
