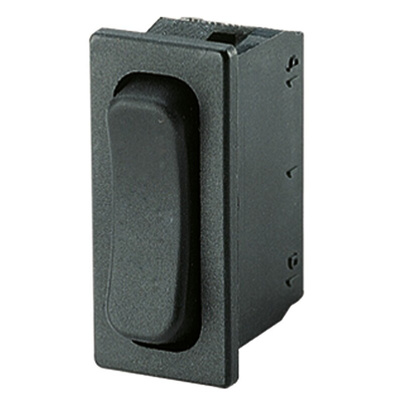

01838.1502-01, Marquardt Single Pole Double Throw (SPDT), On-Off-On Rocker Switch Panel Mount, Клавишный переключатель

8235153
Номер производителя: 01838.1502-01Производитель: Marquardt
Цена за шт.
1473.00 руб. (С НДС) *
Количество 25+ 50+ 100+
Цена 1398.00 руб. 1311.00 руб. 1209.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Marquardt 1830 Series Rocker Switches

From Marquardt, a comprehensive range of single pole and double pole rocker switches designed for panel mounting. With a choice of illuminated and non-illuminated actuators in various legend designs and colours, the 1830 series of rocker switches are suitable for a wide variety of applications including Class II appliances. Fitting is easy, once the recommended panel cut-out is made the sturdy switches snap-in to the panel and are held in place by the retention ribs ensuring a tight fit. The 1830 series of panel mount rocker switches are available with momentary or latching formats including 2 and 3 position switching, on-off centre off and change over. A transparent PVC cover is available to protect the double pole versions of the 1830 series of rocker switches, providing an IP64 rating. Suitable for general repair, maintenance and new prototypes.

Features and Benefits

• AC mains rated
• High current rating, up to 20A
• High inrush current (capacitive) up to 120A
• Rated to UL 94 V-2 (apart from stock numbers 679-8223 an 607-7438 which are UL94 V-0 rated)
• Moulded black or white bodies
• Connection via 4.8 mm or 6.3 mm Faston / Quick Connect terminals
• SPNO, SPST, SPDT DPST and DPDT switch configurations
• Momentary and latching switch operations
• Industry standard cut-outs
• IP40 / IP64 (IP64 when used in conjunction with transparent cover 607-7731)

Applications

Rocker switches are one of the most frequently used types of electrical switch used in the market today. Due to their simple design and easy operation rocker switches are utilised in both domestic and industrial applications. Some of the most common are:
• Security equipment
• Automation and control panels
• Test instruments
• Laboratory equipment
• Power supplies
• HVAC equipment

FAQ

Are the rocker switches easy to connect?

Yes, the 1830 series of switches are fitted with either 4.8 mm or 6.3 mm Faston / quick connect male tab terminals. Simply select the appropriate red, yellow or blue female push on receptacles, according to the wire size required.

Are there any accessories available?

Yes, a transparent PVC cover is available to protect the double pole versions. When fitted correctly they provide an IP64 ingress protection. See part number 607-7731

Note

Single and double pole white body types available, see stock numbers 607-7400 and 741-0842 respectively.
Stock number 679-8223 conforms to the household appliances standard IEC/EN 60335-1:2001/2002 chapter 30.
Momentary types have the momentary state displayed in brackets, e.g. (on) - off - (on).
The current rating and life expectancy figures quoted are nominal, please see datasheet for further ratings.

Approvals

UL; CSA; ENEC

Marquardt Rocker Switches

Техническая спецификация
pdfDatasheet
Высота выреза в панели:
11мм
Диапазон рабочих температур:
-20 → +105 (Terminal Side) °C, -20 → +55 (Actuating Side) °C
Конфигурация контактов:
Single Pole Double Throw (SPDT)
Корпус материал:
Полиамид
Материал контактов:
Серебро
Механический ресурс:
100000Операций
Номинальный ток контакта:
6 A
Освещенный:
Нет
Переменный ток - номинальное напряжение:
250В
Работа выключателя:
On-Off-On
Рабочая температура - максимальная:
+105 (Terminal Side) °C, +55 (Actuating Side) °C
Рабочая температура - минимальная:
-20 (Actuating Side) °C, -20 (Terminal Side) °C
Размеры выреза в панели:
23.5 x 27.2мм
Сопротивление контакта:
<100мОм
Степень защиты IP:
IP40
Тип клеммы:
Быстрое соединение
Тип монтажа:
Крепление на панель
Форма актуатора:
Прямоугольный
Цвет привода:
Черный
Ширина выреза в панели:
30мм
