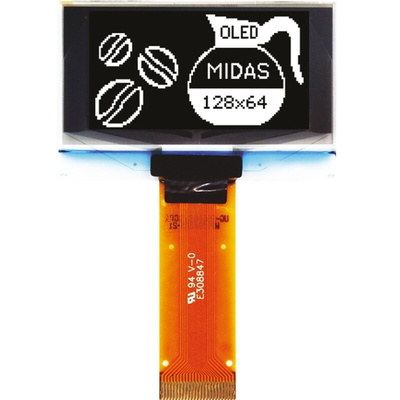

MCOT128064BY-WM, Midas 1.54in White Passive matrix OLED Display 128 x 64pixels TAB I2C, Parallel, SPI Interface, Дисплей

Midas Graphic OLED Displays, TAB

A range of TAB (Taped Automated Bonding) monochrome OLED displays from Midas. These TAB displays allow for very compact, low-profile modules and require significantly less space than traditional LCD graphics modules. The Passive Matrix OLED technology provides high-visibility displays with outstanding visual characteristics, including high contrast and wide viewing angles. The modules are available in a wide range of display colours and resolutions, and have a typical operating life of 60,000 hours.

Viewing angle: > 160° horizontal and vertical
Contrast ratio: > 2000:1
Operating temperature range: -30 to 70°C
Operating life: 60,000 hours at 25°C
Interface type: Parallel/Serial (823-5948 has I2C only)

Note

Some versions have a wider operating temperature range and higher contrast ratio – see manufacturer’s data for details.

Midas Graphic PMOLED Displays

MCOT128064BY-WM Specification
