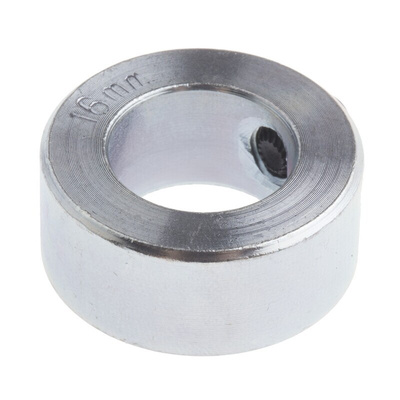

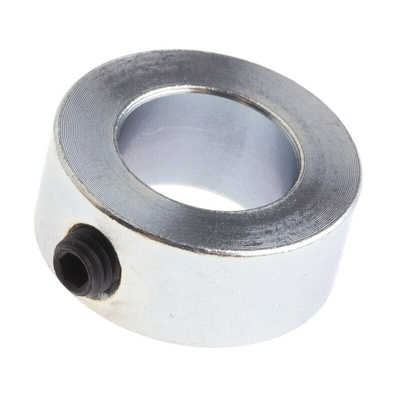

RS PRO Shaft Collar One Piece Set Screw, Bore 16mm, OD 28mm, W 12mm, Steel

RS PRO Collar One Piece Screw, Bore 16 mm, OD 28 mm, W 12 mm, Steel

If you need an easy and reliable way to secure components in power transmissions, use this one-piece shaft collar from the RS PRO range. It's designed to position sprockets, bearings and pulleys on shafts. The component is crafted from a robust steel material that's resistant to impact. The zinc-plated finish provides additional resistance to corrosion, meaning this product offers long-lasting performance in harsh industrial environments.
Thanks to its one-piece design, this handy component is quick and simple to install. All you need to do is place the collar on the shaft and use the included setscrew to securely attach it.
This component has been tested by engineers to ensure its safety and quality. It's most commonly used in the agricultural, packaging and manufacturing industries for securing components onto shafts.

Features and Benefits

• Screw fastening


• Zinc-plated finish


• Steel material


• One piece


• Outside diameter of 28 mm


• Shaft diameter of 16 mm


• Single wide


• Threaded bore size of M6 x 16


• Width of 12 mm

RS Pro Datasheet
