ELP1200FR, Eaton 1200VA Rack Mount, Tower UPS Uninterruptible Power Supply, 230V Output, 750W - Line Interactive, ИБП

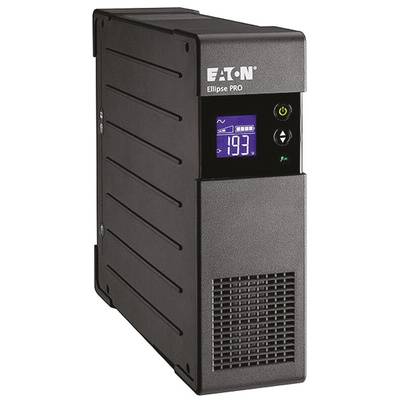

Eaton Ellipse PRO UPS Uninterruptible Power Supplies

The Eaton Ellipse PRO range of uninterruptible power supplies are the perfect solution for the backup supply of power to data centres and offices. Featuring line-interactive technology specifically developed for the power protection and surge protection of workstations running demanding applications. The LCD screen on the Eaton Ellipse PRO UPS system provides clear information on its status and measurements and allows easy configuration of UPS settings. Eco control power outlets enable high-efficiency energy savings of up to 20% and include advanced surge reduction (ASR).

Features and Benefits

• The UPS system features a conveniently compact and easy to install design suitable for any office environment and can be rack mount or wall mount with the appropriate accessory kit.
• Delivers clean output with automatic voltage regulation (AVR with buck and boost)
• Protects data connections such as Ethernet, internet and telephone lines
• Up to 8 outlets to connect your PC and peripherals
• USB port and Eaton UPS companion software that enables safe system shutdown, energy usage metering and easy configuration of UPS settings
• The UPS power supply battery self-tests automatically at regular intervals, ensuring early detection when it’s time for a replacement.
Available in 650VA to 1600VA power ratings.
• The device has a three-year warranty, including the battery.

Advanced protection for:

• Workstations
• Network devices
• Peripherals

What is an Uninterruptible Power Supply used for?

An uninterruptible power supply (UPS) is designed to give your computers, servers, server rooms and data centres power in the case of any unexpected energy cut off or in similar applications. These power supply devices contain a battery that guarantees power to your computer system for a certain period of time. These enable the user time to save the current task and shutdown software. Uninterruptable power supplies ensure mission-critical data loss can be prevented.

Eaton Uninterruptible Power Supplies(UPS)

The Eaton Ellipse PRO 1200VA line-interactive UPS is specifically developed to protect workstations running demanding applications. The LCD screen on the Eaton Ellipse PRO UPS provides clear information on its status and measurements. It also allows easy configuration of UPS settings. It also features eco control power outlets, which enable energy savings up to 20% and advanced surge reduction (ASR).

Features and Benefits

Convenient extra flat design for easy installation in any office environment
Current rating is 10A
Delivers clean output with automatic voltage regulation (AVR with buck and boost)
Input voltage ranges between 165V and 285V

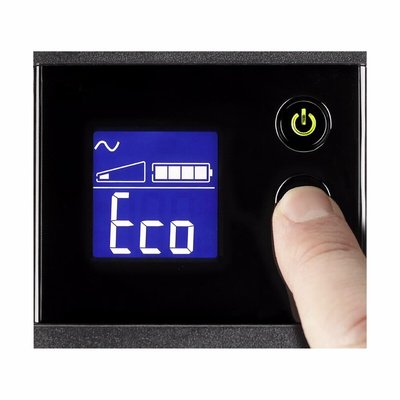

LCD display for real-time status and measurements
Output voltage is 230V
Power rating is 750W
Protects data connections such as Ethernet, internet and telephone lines
Up to 8 outlets to connect your PC and peripherals
USB communication
USB port and Eaton UPS companion software that enables safe system shutdown, energy usage metering and easy configuration of UPS settings
Operating Temperature ranges between 0°C and 35°C

Applications

Network devices
Peripherals
Workstations

Certifications

IEC 616431-1 standard

Contains SVHC - Lead - CAS No. 7439-92-1
