ELP1600FR, Eaton 165 → 285V Input Stand Alone Uninterruptible Power Supply, 1600VA (1kW), Ellipse PRO, ИБП

Eaton Ellipse PRO UPS Uninterruptible Power Supplies

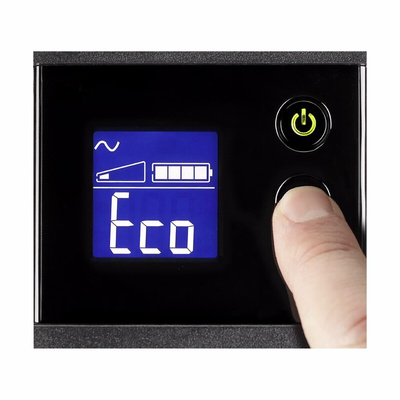

The Eaton Ellipse PRO range of uninterruptible power supplies are the perfect solution for the backup supply of power to data centres and offices. Featuring line-interactive technology specifically developed for the power protection and surge protection of workstations running demanding applications. The LCD screen on the Eaton Ellipse PRO UPS system provides clear information on its status and measurements and allows easy configuration of UPS settings. Eco control power outlets enable high-efficiency energy savings of up to 20% and include advanced surge reduction (ASR).

Features and Benefits

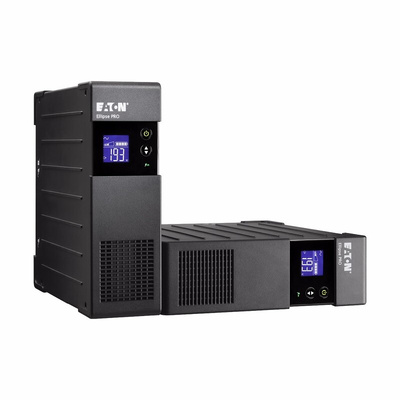

• The UPS system features a conveniently compact and easy to install design suitable for any office environment and can be rack mount or wall mount with the appropriate accessory kit.
• Delivers clean output with automatic voltage regulation (AVR with buck and boost)
• Protects data connections such as Ethernet, internet and telephone lines
• Up to 8 outlets to connect your PC and peripherals
• USB port and Eaton UPS companion software that enables safe system shutdown, energy usage metering and easy configuration of UPS settings

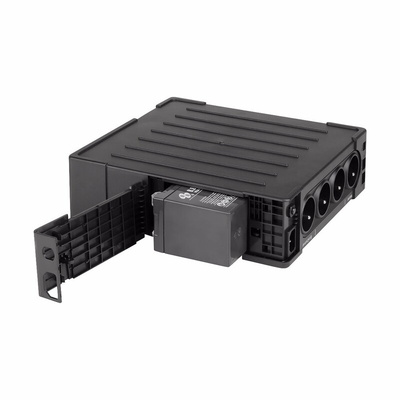

• The UPS power supply battery self-tests automatically at regular intervals, ensuring early detection when it’s time for a replacement.
Available in 650VA to 1600VA power ratings.
• The device has a three-year warranty, including the battery.

Advanced protection for:

• Workstations
• Network devices
• Peripherals

What is an Uninterruptible Power Supply used for?

An uninterruptible power supply (UPS) is designed to give your computers, servers, server rooms and data centres power in the case of any unexpected energy cut off or in similar applications. These power supply devices contain a battery that guarantees power to your computer system for a certain period of time. These enable the user time to save the current task and shutdown software. Uninterruptable power supplies ensure mission-critical data loss can be prevented.

Eaton Uninterruptible Power Supply, 230 V Output, 1kW - Eaton Ellipse PRO Series - ELP1600FR

Back up your power supply with this UPS (uninterruptible power supply) from Eaton. It's a smart choice for offices, data centres and workstations running critical processes. The unit features eight sockets with surge protection, so you can be assured of productivity even during power surges, brownouts and overvoltages. An LCD (liquid crystal display) screen that displays real-time status and measurements helps you configure and maintain the device with ease. Plus, the battery automatically tests itself so you can plan replacements well in advance.

• Extra-flat design with multiple installation options for enhanced space use
• Cold-start-capable batteries to help you test bad input power
• Connect up to eight devices with FR (French) sockets
• Protects data connections such as ethernet, internet and telephone lines

Does this unit offer energy savings?

This UPS is equipped with two EcoControl sockets that automatically disable the peripherals when the master device is turned off. This can help save energy by up to 20%.

What is the typical backup time on the batteries?

The battery takes about five minutes to back up at 70% load, and about nine minutes at 50% load.

Contains SVHC - Lead - CAS No. 7439-92-1
