5P1150iR, Eaton 160 → 294V Input Rack Mount Uninterruptible Power Supply, 1150VA (770W), 5P, ИБП

Eaton 5P UPS Uninterruptible Power Supply

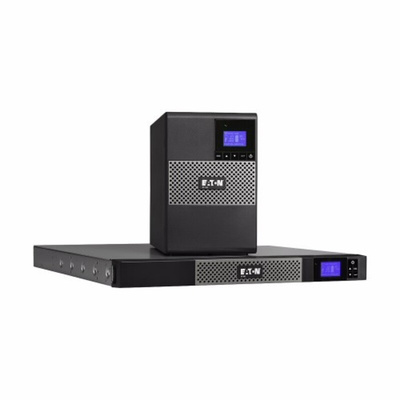

The new Eaton 5P range features the next generation of 650VA-1550VA line-interactive uninterruptible power supply (UPS) with advanced LCD and energy metering features. The Eaton 5P is the perfect UPS to provide protection for IT and networking devices such as servers, switches, routers and storage devices. The power supply is available in tower or rack format.

Features and Benefits

• Next-generation graphical LCD display shows a range of information including status and measurements on a single screen (in seven languages)
• Navigation keys make the power supply device easy to use
• The Eaton UPS system is energy efficient with up to 98% efficiency
• Serial and USB connectivity are available
• Advanced battery management (ABM) on Eaton UPS power supplies allows for a 50% extension of battery life
• 3 years warranty on electronics, 2 years on battery
• Pure Sinewave output

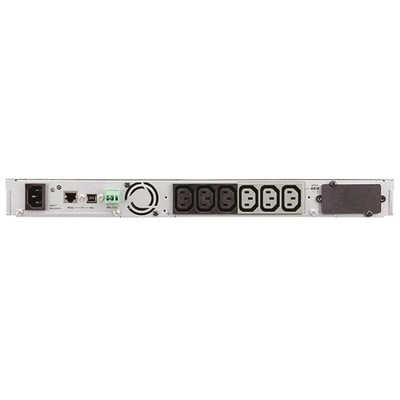

• Switched outlet groups

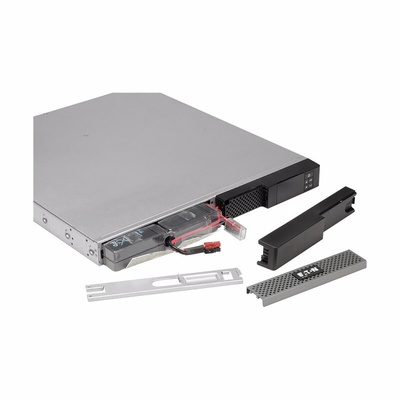

• Optional hot-swap maintenance bypass module for batteries

What is an Uninterruptible Power Supply used for?

An uninterruptible power supply (UPS) is designed to give your computers, servers, server rooms and data centres power in the case of any unexpected energy cut off or in similar applications. These power supply devices contain a battery that guarantees power to your computer system for a certain period of time. These enable the user time to save the current task and shutdown software.

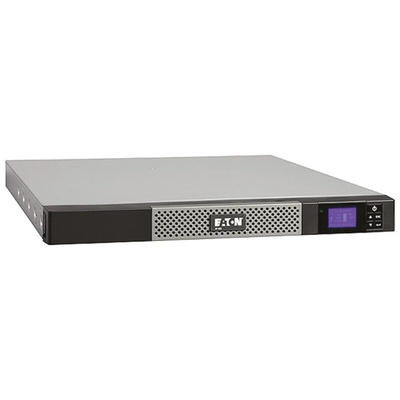

Eaton Uninterruptible Power Supply, 230 V Output, 770 W - 5P Series - 5P1150iR

Choose this Eaton UPS (uninterruptible power supply) to ensure your data and power supply are protected from unexpected electrical outages. The unit is specifically designed for use with system-critical IT and networking equipment such as servers, switches and storage devices. The UPS features load segment control that enables shutdowns of non-essential equipment during outages in order to maximise battery runtime. Thanks to the pure sinewave output, this UPS is suitable for use with sensitive equipment like active PFC (power factor corrected) servers.

• Wide input voltage range of 160 V to 294 V for complete backup protection
• Provides up to 98% efficiency with reducing cooling and utility overheads
• Compact design to fit in 1U (one unit of rack height)
• Innovative three-stage charging technique that extends battery life by up to 50%
• Manufacturer warranty of three years on electronics and two years on battery

How can I meter energy consumption on this unit?

This unit features a clear graphical LCD (liquid crystal display) that can be configured in seven languages. It provides kWh (kilowatt hour) values using Eaton’s robust power management software.

What's the backup time on the battery?

The battery takes about twelve minutes to back up at 50% load, and seven minutes at 70% load.

Contains SVHC - Lead - CAS No. 7439-92-1
