5PXEBM72RT3U, Eaton Rack Mount, Stand Alone Battery Expansion Module, 3000VA, 5PX, ИБП

Eaton 5PX UPS Uninterruptible Power Supplies

The Eaton 5PX range features a rack-mount or stand-alone UPS that provides line-interactive backup power and scalable runtime for servers, storage systems, VoIP gear, and network equipment. With a next-generation intuitive LCD, energy consumption metering down to the outlet group level and high efficiency up to 99%, 5PX is the perfect UPS solution for the power protection of data centres, servers, switches, routers and storage devices.

Features and Benefits

• Next-generation graphical LCD display shows a range of information including status and measurements on a single screen (in seven languages)
• The 5PX can meter energy consumption down to the managed outlet group
• Navigation keys make these UPS systems easy to use
• The Eaton UPS system is energy efficient with up to 99% efficiency
Line-Interactive High Frequency technology
• Serial and USB connectivity are available
• Advanced battery management (ABM) on Eaton UPS power supplies allows for a 50% extension of battery life
• Optional hot-swap maintenance bypass module for batteries
• 0.9 output factor, delivering more power and protecting more servers
• Rack-mount or tower mount
• Easy to install and supplied with a rail rack kit

What is an Uninterruptible Power Supply used for?

An uninterruptible power supply (UPS) is designed to give your computers, servers, server rooms and data centres power in the case of any unexpected energy cut off or in similar applications. These power supply devices contain a battery that guarantees power to your computer system for a certain period of time. These enable the user time to save the current task and shutdown software. Uninterruptable power supplies ensure mission-critical data loss can be prevented.

Approvals

CE,CB report,TUV

Standards

IEC/EN 62040-1-1 ( Safety ), IEC/EN 62040-2 ( EMC ) , IEC/EN 62040-3 ( Performance )

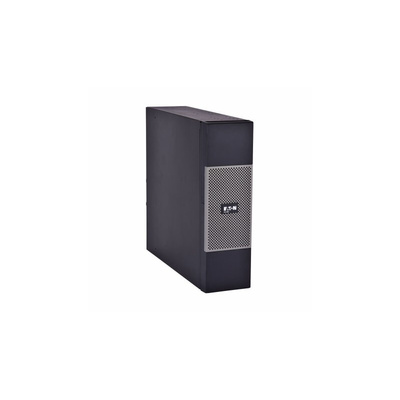

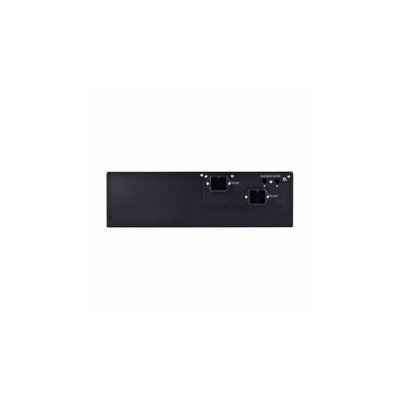

Eaton Battery Expansion Module, Rack Mount, 3000 VA - 5PX Series - 5PXEBM72RT3U

To make replacing batteries in your Eaton UPS (uninterruptible power supply) easy, choose this EBM (extended battery module). All you need to do is disconnect the power cable and its RJ11 communication cable, swap out the rack unit and reattach the power and data cables. As the unit is automatically recognised by the UPS, you'll get immediate power back up with a quick and simple maintenance procedure. You can connect up to four of these modules to your UPS to reliably increase the battery runtime.

• Specially designed for use in data centres, server rooms and networking systems running critical applications
• Innovative three-stage charging technique that reduces corrosion and prolongs service life by up to 50%
• Accepts a wide voltage range of 160 V to 294 V for complete backups
• Supplied with rack-mounting kit and mounting plate for easy installation

Can I use this EBM to back up sensitive equipment?

As this battery provides pure sinewave output, you can be confident of a high-quality output signal for any sensitive equipment connected, such as active PFC (power factor corrected) servers.

Contains SVHC - Lead - CAS No. 7439-92-1
