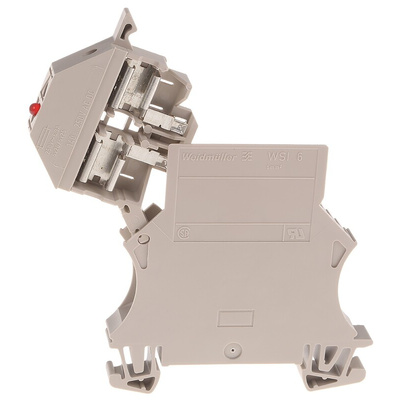

1012400000, Weidmuller Weidmüller W Series Beige Fused DIN Rail Terminal, 6mm², Single-Level, Screw Termination, Fused

Weidmuller Fused DIN Rail Terminal, 19.47g Weight, Wemid Material - W Series - 1012400000

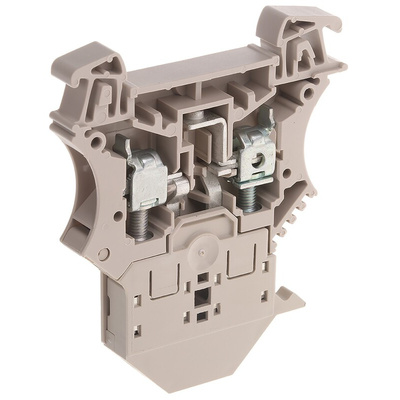

Make connections between your electrical components with this fused DIN rail terminal from Weidmuller. Completing your circuit is easy as can be, as you simply push your wires into each side of the product and screw them in place for a secure connection. Its integrated fuse protects sensors, relays and other sensitive electronics by stopping the flow of electricity in the event of a dangerous overcurrent. As it weighs only 19.47g, this unit places minimal strain on your setup.

Features & Benefits

• Suitable for use in harsh conditions, thanks to its broad operating temperature range between -50°C and +120°C

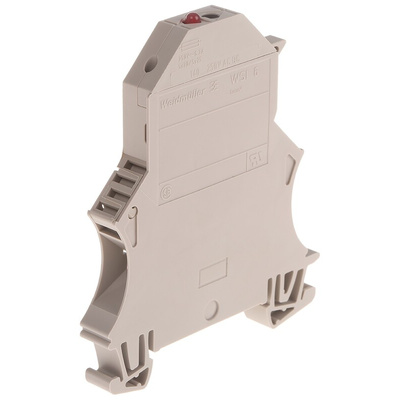

• Red LED indicator allows for hassle-free status monitoring
• Accepts conductors ranging in size from 20 to 8AWG for flexible wiring
• Voltage rating of 250V AC/DC for use in powerful electrical systems

Applications

• Industrial automation
• HVAC equipment
• Automotive manufacturing
• Telecommunications sector

Is this product protected against powerful voltages?

Yes. This unit has a rated impulse withstand voltage of 6kV for additional electrical safety.

How big is this unit?

This product has compact dimensions of just 60 (H) x 7.9 (W) x 71.5mm (D) to maximise space on your DIN rail.

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
