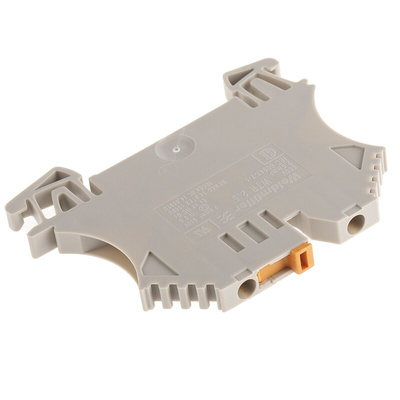

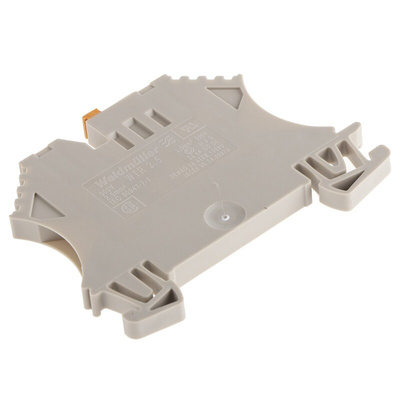

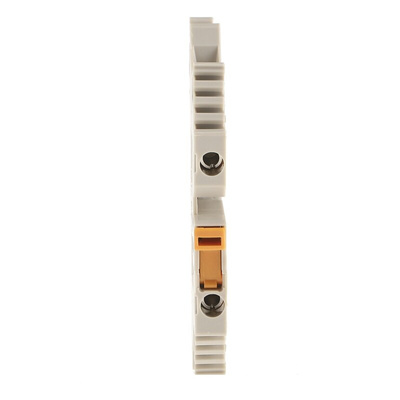

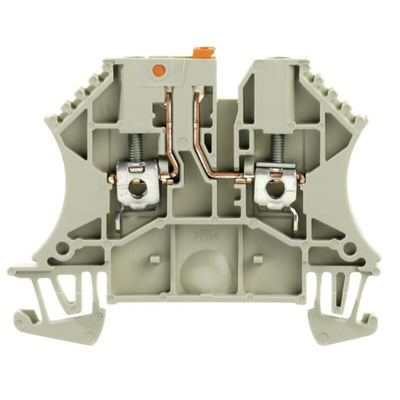

1855620000, Weidmuller W Series Beige Disconnect Terminal Block, 2.5mm², Single-Level, Screw Termination

Weidmuller Disconnect Terminal Block, 30 to 12AWG Wire Size Range, Screw Termination Method - W Series - 1855620000

Make sure your circuits are running in tip-top condition with this single-level disconnect terminal block from Weidmuller. Thanks to a handy removable lever, it lets you safely and easily interrupt the flow of electricity between contacts if you need to test or troubleshoot the system. The durable Wemid material is impact-resistant, so it can handle the demands of tough industrial environments. As this versatile gadget is compatible with wire sizes between 30 and 12AWG, you can be sure it's a secure fit for both the widest and the narrowest cables in your control cabinet.

• Wide operating temperature range between -50°C and +120°C for use in extreme conditions
• Burning stops in 10 seconds or less to help prevent the spread of fire
• Straightforward clamping yoke terminals offer secure connections with no need for specialist tools

Applications

• Energy management
• Lighting controls
• Server racks

How do I install this product?

As it's compatible with a standard top hat DIN rail, set-up couldn't be easier. Simply clip this practical device in place, and it's good to go.

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.

1855620000_WTR_2.5_STB2.3_en 8239596
