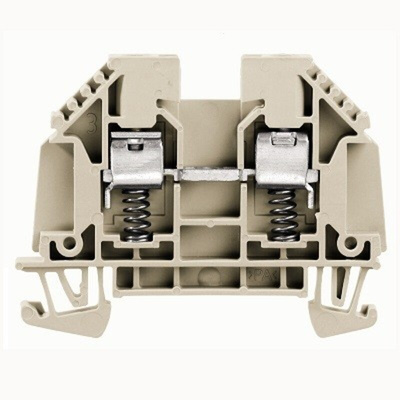

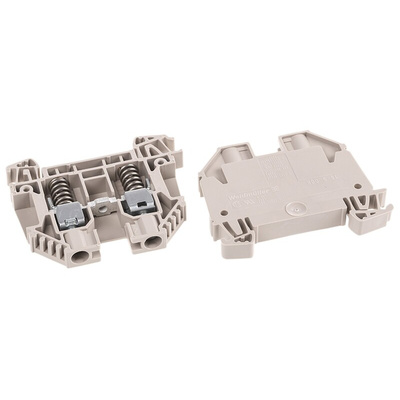

9537460000, Weidmuller Weidmüller W Series Brown Feed Through Terminal Block, 0.5 → 10mm², Single-Level, Screw Termination, ATEX, IECEx

Weidmuller Feed-Through Terminal Block, 20 to 8AWG Wire Size Range, Wemid Material - W Series - 9537460000

For an electrical connection you can rely on, choose this feed-through terminal block from Weidmuller. It has two clamping points, so you can connect multiple wires at once. Screw connections hold your wires securely in place, even when your equipment is on shaky ground. For installation in a flash, simply snap it onto a DIN rail. Its voltage rating of 630V means it can power through high-voltage applications.

Features & Benefits

• Safe for use in harsh conditions, thanks to its wide operating temperature range between -60°C and +130°C
• Self-extinguishes in 10 seconds or less to help prevent the spread of flames in the event of a fire
• Wemid construction for resistance to impact and wear
• Compact dimensions of 60 (H) x 7.9 (W) x 46.5mm (D) to maximise packing space on your rail

Applications

• Industrial machinery
• Power distribution
• Building automation

What wire sizes does this terminal block handle?

This terminal block can accommodate wires ranging in size between 20 and 8AWG, giving you flexibility in your setup.

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
