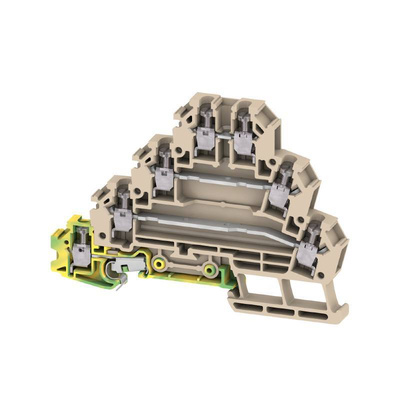

7917030000, Weidmuller W Series Brown DIN Rail Terminal Block, 0.5 → 4mm², Quadruple-Level, Screw Termination

W Series MAK Motor Connection Terminal

W series Motor-connection terminal with yoke connection technology. The yoke connection on the terminals make planning easier and optimises operational safety.

Features and Benefits

• Screw connection
• Direct mounting

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.

Datasheet - 7917030000
