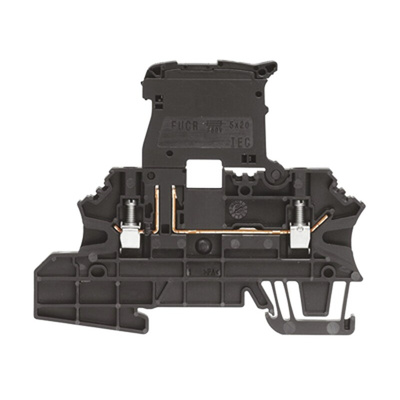

1162920000, Weidmuller W Series Black Fused DIN Rail Terminal, 2.5mm², Single-Level, Screw Termination, Fused

WMF Fuse Terminal Blocks

Multi-functional terminal blocks provide a multi-functional solution for routing and distributing signals. The terminals are compact and space-saving and can be used with feed-through, fuse and disconnect functionality.

Features and Benefits

• Combined functionality in a single solution
• Integrated shield connection
• Wide variety of labelling options
• Screw connection
• DIN Rail mounting

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
