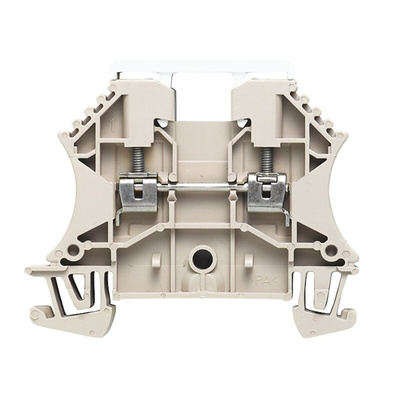

1024300000, Weidmuller W Series Dark Beige Thermoelectric Voltage Terminal Block Pair, 2.5mm², Single-Level, Screw Termination

W Series Modular Thermocouple Terminals

A versatile and extensive range of 2.5 mm² thermocouple terminal blocks compatible with the most popular thermocouple types:

8239726 - Type K
8239720 - Type T
8239739 - Type J
8239732 - Type SR
8239736 - Type B
8239745 - Type E
8239748 - Type N
\t
Hardened steel for mechanical strength and high-quality tinned copper contacts for optimum conductivity. All materials comply with RoHS requirements and have been tested to current environment guidelines.

Features and Benefits

• Spring and screw connection technology
• Snap-on mounting

Approvals

CE, CSAEX, ATEX, EAC, Exi, IECEx-SIRA, IEC EC, INMETRO

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.

1024300000_WDU_2.5_TC_TYP_J_en 8239739
