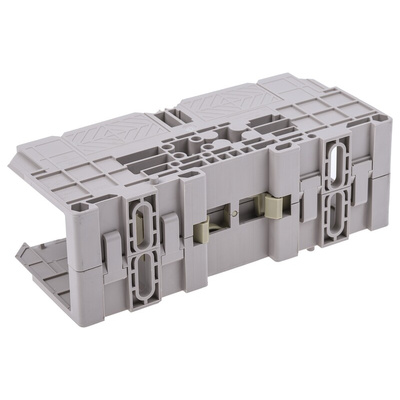

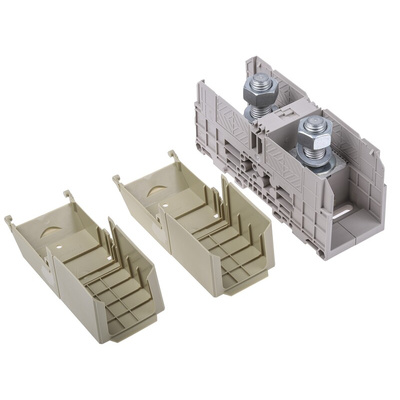

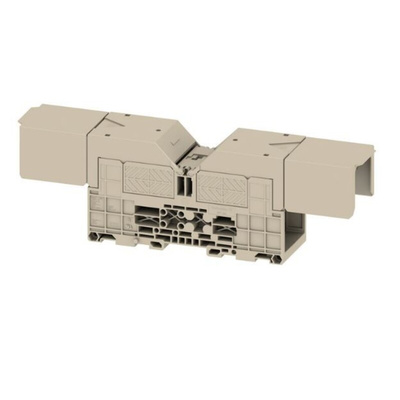

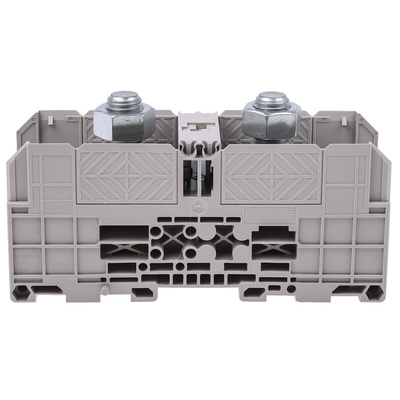

1029700000, Weidmuller WFF Series Dark Beige DIN Rail Terminal Block, 25 → 240mm², Single-Level, Bolt Termination

Weidmuller DIN Rail Terminal Block, Bolt Termination Type, 55mm Pitch - WFF Series - WFF 300/AH - 1029700000

For quick and easy electrical connections that can stand up to the stresses of heavy industrial use, grab this DIN rail terminal block from Weidmuller. The single-level unit lets you link two conductors in one circuit, with built-in protections against overcurrent and short circuits. An impressive voltage rating of 1kV means it can stand up to use in heavy-duty electrical applications. As it's manufactured from Wemid, it's resistant to impact and wear to offer long-lasting performance in even the toughest environments.

• Hefty current rating of 520A for use with very high-current circuits
• Self-extinguishing in 10 seconds or less for fire safety
• Wide operating temperature range between -50°C and +120°C for use in extreme conditions
• Designed for DIN rail mounting for hassle-free installation

Applications

• HVAC systems
• Electrical installations
• Building management

Will this device fit in confined spaces?

Yes, thanks to its compact dimensions of just 163 (H) x 55 (W) x 85.5mm (D), you'll find this adaptable gadget can make itself at home in tight spots.

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
