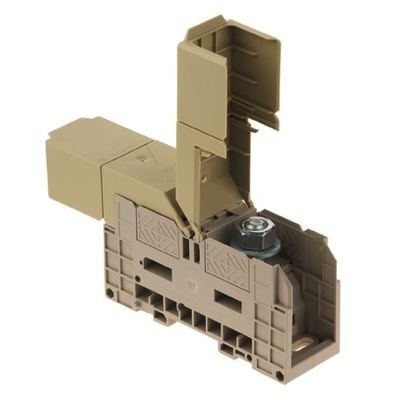

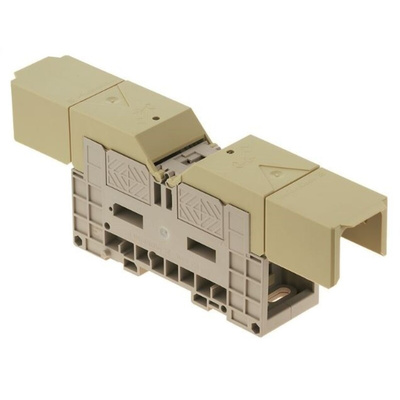

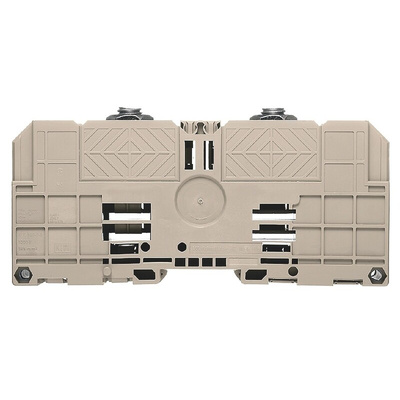

1029600000, Weidmuller WFF Series Dark Beige DIN Rail Terminal Block, 25 → 240mm², Single-Level, Bolt Termination

Weidmuller DIN Rail Terminal Block, Bolt Termination Method, 466g Weight - WFF Series - WFF 185/AH -1029600000

Looking for a reliable wiring component? Put an end to disorganised wiring with this Weidmuller DIN rail terminal block. After threading your conductors into each of the terminals, simply tighten the fasteners for a safe and secure electrical connection. This nifty device snaps onto a DIN rail for speedy set-up. Thanks to its wide operating temperature range between -50°C and +120°C, it's just the thing for harsh work areas.

• Current rating of 353A for use in powerful electrical systems
• Robust Wemid body is resistant to impact and wear
• Rated impulse withstand voltage of 8kV for protection against powerful spikes
• Maximum tightening torque of 31Nm makes it a cinch to wire up

Applications

• Lighting control systems
• Telecommunications equipment
• Building wiring

What wire sizes does this unit accept?

This versatile product accepts finely stranded wires in a broad cross-section range between 25 and 240mm².

How big is this terminal block?

Its compact dimensions of 287 (H) x 55 (W) x 89.5mm (D) make it a great choice for a busy DIN rail.

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
