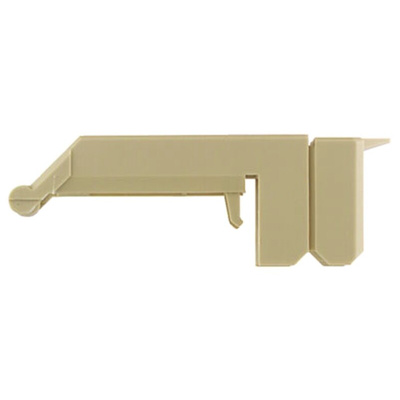

1064460000, Weidmuller Weidmüller WFF Series Beige DIN Rail Terminal Block, Bolt Termination

Weidmuller DIN Rail Terminal Block, 27mm Pitch, Bolt Termination Method - WAH Series - 1064460000

Finish your electrical installations with a flourish using this DIN rail terminal block from Weidmuller. It allows you to connect wires together safely and conveniently by clamping them inside a non-conductive housing. The wires are held in place by bolt-type screw terminals, so they're easy to fit without the need for special tools. You can use this component in extreme environments thanks to its broad operating temperature range between -50°C and +100°C.

• Pitch of 27mm between poles to accommodate thicker wires
• Made from self-extinguishing and halogen-free nylon 66 for improved health and safety
• Compact dimensions of 63.5 (H) x 26 (W) x 22.6mm (D) for installation in areas where space is at a premium
• Designed for DIN rail mounting for installation in a snap

Applications

• Industrial automation
• Manufacturing equipment
• Energy production and storage
• Commercial building projects

Why should I use a terminal block?

While it's possible to make a connection simply by twisting two wires together, using a terminal block is safer as it leaves no exposed wiring.

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.

Datasheet

Catalogue - Terminal Blocks Klippon Connect
