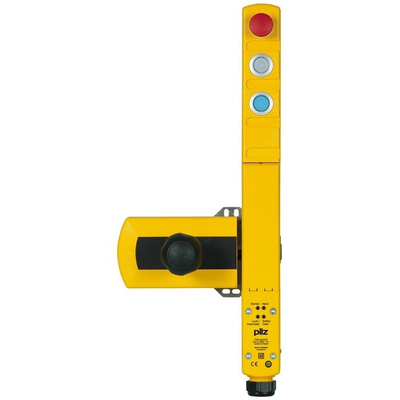

570800, Pilz PSEN sg2c Series Solenoid Interlock Switch, 24V dc, Actuator Included

Pilz Safety Interlock Switch

The Pilz PSENsgate safety interlock switch has a supply voltage rating of 24VDC. It has 2NC safety contact. This is a gate monitoring system combines secure safety gate monitoring, safe guard locking and control elements in one system. Also, additional functions such as E-STOP and escape release are included with this non-contact switch.

Features and Benefits

Actuator type is handle
Release type is turn release
Safe guard locking device
Safe interlocking
Transponder technology
2 safety inputs for series connection of several safety switches
2 safety output
Locking pin keeps the bolt tongue from being opened unintentionally
Detection of bolt tongue and locking pin breakage
Padlock for restart interlock
Auxiliary release for opening the safety gate, when the plant's voltage is switched OFF
Escape release for fast release in emergency situations from within the danger zone
Suitable for left and right hinged gates
Plug-in spring-loaded terminals
LED for supply voltage/fault, gate closed, status of the hazardous machinery, status of the inputs, bolt tongue is engaged
Conduit entry is M12

Certifications

IP54 rated
VDE 0660 T100
EN 60947-1
VDE 0660 T200
EN 60947-5-1
IEC 60947-5-1
GS-ET-19
EC certified
BG certified
TUV certified
CE certified
CSA certified
