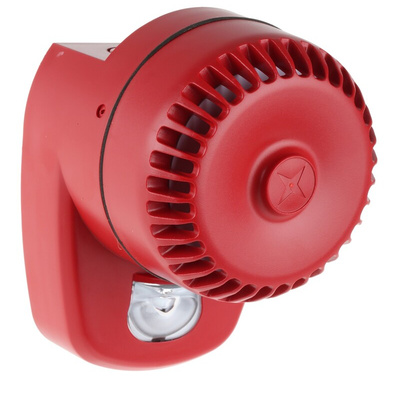

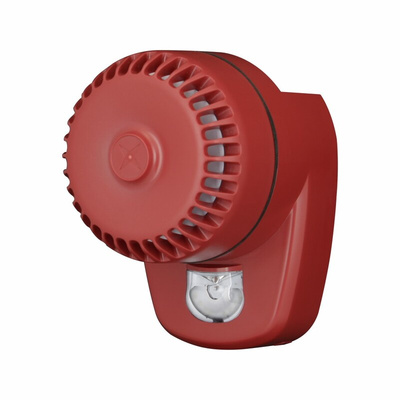

ROLP/R1/LX-W/RF, Eaton Series Red Sounder Beacon, 9 → 15 V dc, 18 → 28 V dc, IP65, Wall Mount, 106dB at 1 Metre

Fulleon RoLP LX Wall Sounder Beacon

The RoLP LX Wall sounder beacon from Fulleon is ideal for applications that require both a visual and audible alarm. This sounder beacon is a reliable, high performing VAD (Visual Alarm Device) that is certified to EN54-23 and is designed around the popular Roshni product platform. It is recommended for wall mounting and requires only one installation point. As this unit includes both a sounder and a beacon it is considered a dual alarm device and is suitable for use as a fire alarm sounder in conventional fire alarm systems. It is also available as a base only unit, which can be used with any standard RoLP sounder, including the high output RoLP Maxi.

Features and Benefits

• Sounder and beacon device suitable for fire signalling systems
• LED technology for long life and low current consumption
• Up to 7.5m coverage volume (switchable to 2.5m)
• 0.5 or 1Hz flash rate (switch to 0.5Hz to reduce current consumption)
• Delivering up to 106 dB (A) sound output
• IP65 protection
• White or red body and white or red lens options
• Locking base

Note: Industry recognised product - LX base retrofits existing Roshni, RoLP & RoLP Maxi.
Standards: EN54-23, AFNOR, CNBoP and AS certifications and models specific to NF and VDS approvals.

Note

Industry recognised product - LX base retrofits existing Roshni, RoLP & RoLP Maxi.

Standards

EN 54-23.

Eaton Red Flashing Sounder Beacon, 18 to 28V DC, 106dB - RoLP LX Wall Series - ROLP/R1/LX-W/RF

Looking for a safety solution that can be seen and heard? This Eaton red sounder beacon is an effective VAD (visual alarm device). When activated, the light flashes at between 0.5 and 1Hz and the alarm emits a very loud sound up to 106dB. The combination of visual and audible elements makes this device suitable for use on emergency vehicles and as part of fixed alert systems in buildings. You can install it in schools, office buildings and warehouses where constant background noise would be expected.

• Versatile option that's approved for use as a fire alarm
• IP65 (ingress protection) rating means the internal components are shielded from dust and low-pressure water sprays

What lamp does this sounder beacon use?

This Eaton sounder beacon comes with a ready-installed LED (light-emitting diode), which is long-lasting and energy-efficient.

Can I install this sounder beacon in outdoor settings?

Yes. This item can operate at temperatures between -25°C and +75°C, so it's suitable for use in demanding indoor and outdoor environments.

Note

Eaton formerly known as Fulleon
