691363110008, Wurth Elektronik 3.5mm Pitch 8 Way Pluggable Terminal Block, Plug, Cable Mount, Screw Termination, Клеммная колодка

8250868
Номер производителя: 691363110008Производитель: Wurth Elektronik
Цена за шт.
1379.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

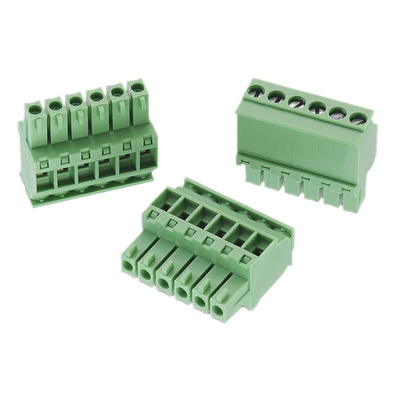

Wurth WR-TBL 3631 Series 3.50mm Pitch Right Angle Terminal Block Plug Connectors with Retention Latch

WR-TBL 3631 series 3.5mm pitch right angle cable mount terminal block plug connectors with female sockets, a retention latch on the wire side and a 'slot' type M2 screw terminal that accepts a wire size of AWG 28-16. These WR-TBL 3631 series 3.50mm pluggable terminal block cable mount connectors are made from green UL94-V0 PA66 and have a tin plated phosphor bronze wire guard.

3.5mm Pitch - Wurth

Техническая спецификация
pdfWR-TBL 3631 Series 3.5mm Pitch, Horizontal Mount PCB Terminal Block Plug Connector with Latch
