SX-CMC99 - MultiCon Data Recorder

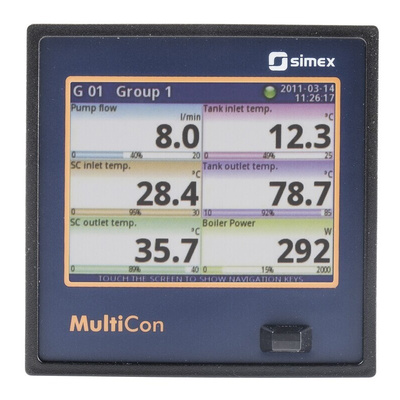

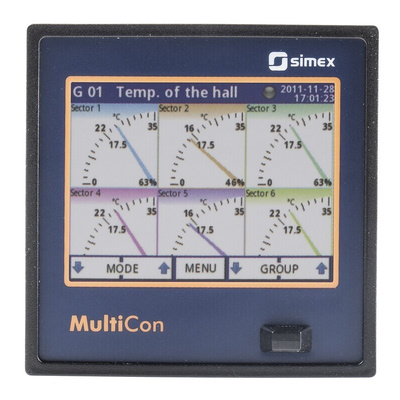

The CMC-99 Indicator/Controller/Recorder is equipped with a 3.5" LCD touchscreen, 3 physical measurement input and 1 digital input. Casing depth is only 102 mm.
The MultiCon CMC-99 is a powerful and versatile compact-multichannel-controller with a capability to record data if the recording function is requested and activated. Thanks to that, it is one of the first industrial devices which integrates advanced control functions (PID, ON/OFF, time & profiles) and logging of setpoints, excitations and current state of controlled objects. Based on Linux firmware, is stable and the touch screen makes configuration easy and comfortable and data presentation also readable and attractive.

• Measurement Inputs: 3 analogue “universal” inputs for current or voltage or RTD or thermocouple or resistance – fully isolated
• Digital Inputs: 1 digital
• Outputs: 4 relay 5A/250V SPDT
• Display: 3.5 in graphic TFT, 16-bit colour, 320 x 240 pixels, with touch screen
• Communication interface standard: RS-485 (Modbus RTU), 1 x USB Host
• Available data recording speed: from, 0.1 s to 24 h with resolution 0.1 s
• Internal memory capacity: 1.5 GB
• Operating temperature: 0°C ÷ +50°C
• Storage temperature -10°C ÷ +70°C
• Case dimensions 96 x 96 x 100 mm
• Protection class: version with front USB: IP 40
• Panel cut-out dimensions: 90.5 x 90.5 mm
• Installation depth: 102 mm
• Installation Panel Thickness: 5 mm max
• Frontal USB Port allows for connection of keyboard and mouse for preference
