SX-CMC99-04E0-RS, Simex SX-CMC99-04E0, 4 Input Channels, 4 Output Channels, Multichannel Controller Chart Recorder Measures Current,, Диаграммный самописец

Simex Chart Recorder

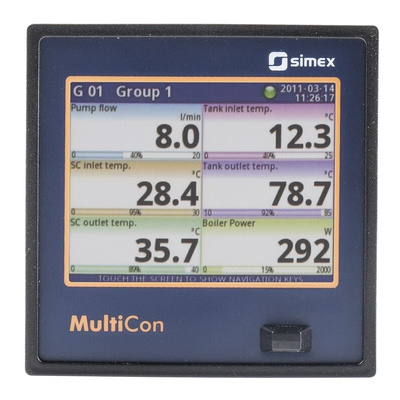

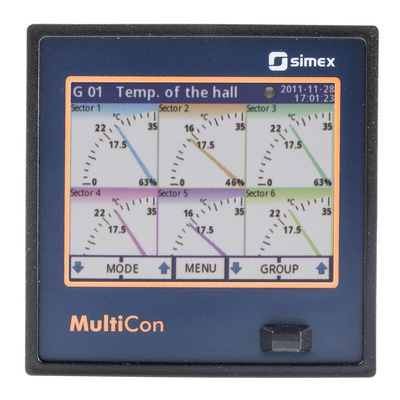

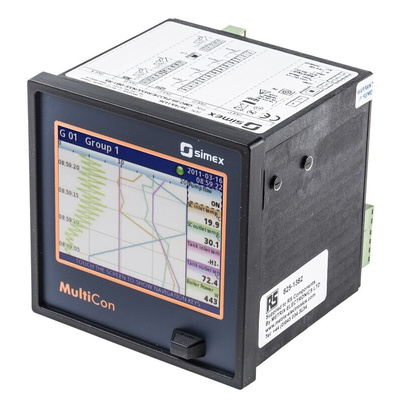

The Simex CMC99 is a 4-channel multichannel controller chart recorder has an operating electric supply that ranges between 85Vac/dc and 260Vac/dc. It is a powerful and versatile compact multi-channel controller with a capability to record data if the recording function is requested and activated. Based on Linux firmware, it is stable and 3.5in graphic TFT, 16-bit colour, 320 x 240 pixels, with touch screen makes configuration easy and comfortable and data presentation also readable and attractive. It is used to monitored and measures current, millivolt, resistance, temperature and voltage.

Features and Benefits

3 analogue universal inputs for current or voltage or RTD or thermocouple or resistance fully isolated
4 relay output 5A/250V SPDT
Available data recording speed is from,0.1 seconds to 24 hours with resolution 0.1s
Communication interface standard- RS-485 (Modbus RTU)and 1xUSB host
Front USB Port allows for connection of keyboard and mouse for preference
Internal memory capacity is 1.5GB
Operating temperature ranges between 0°C and 50°C
Case dimensions 96 x 96 x 100mm
Installation depth: 102mm
Installation Panel Thickness: 5mm max

Certifications

IP40 rated
