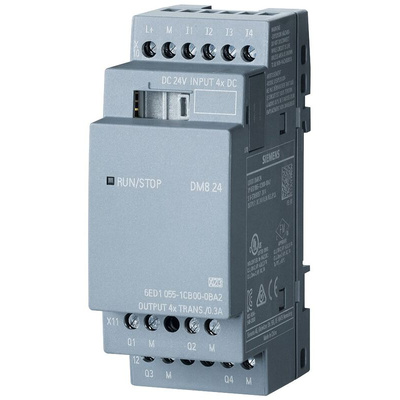

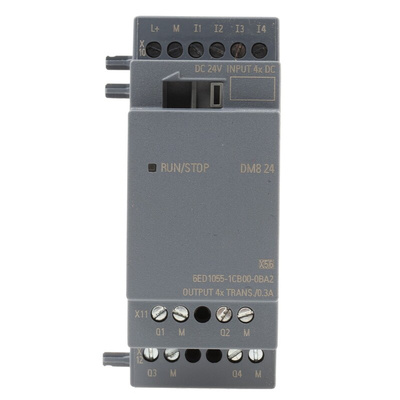

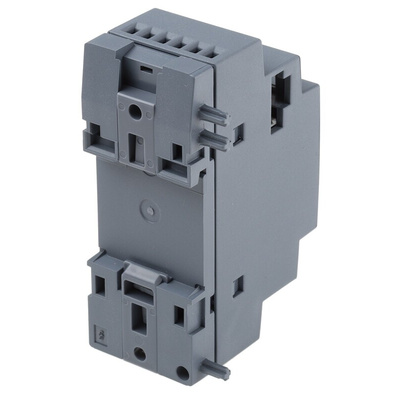

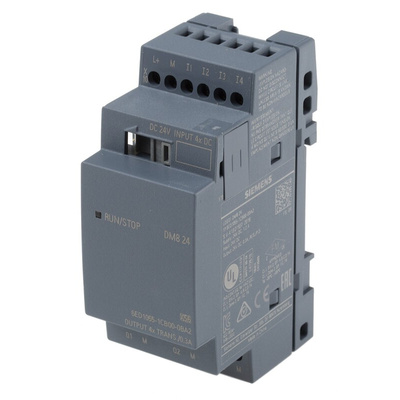

6ED1055-1CB00-0BA2, Siemens LOGO! Expansion Module, 24 V dc Digital, 4 x Input, 4 x Output Without Display, Модуль расширения

Siemens Expansion Module

The Siemens LOGO! 8 series logic module has 4 digital inputs and 4 transistor outputs with a contact rating of 300mA. This DIN rail mount logic module has a screw termination method. This logic module has a supply voltage of 24VDC. It has a text message communication function for alerts. Control via a smartphone is made possible using the LOGO! CMR module. The LOGO! web editor is a new tool used together with a LOGO! base module (BM) and LOGO! soft comfort. This tool helps you to create user-defined web pages in the editor pane and visit the whole project through the web server of the LOGO! base module. The data of the logic module can be accessed through the LOGO! access tool V2.0.0.

Features and Benefits

Full communication via Ethernet
Communication with SIMATIC controllers, SIMATIC panels and PC
No HTML knowledge required
Operating temperature ranges between 0°C and 55°C
Drag and drop programming
Comprehensive customisation

Applications

Built-in web server
Datalog
User-defined web page
Filter and transport systems
monitoring equipment or building management systems

Certifications

CSA certified
UL approved
CE
FM approved
