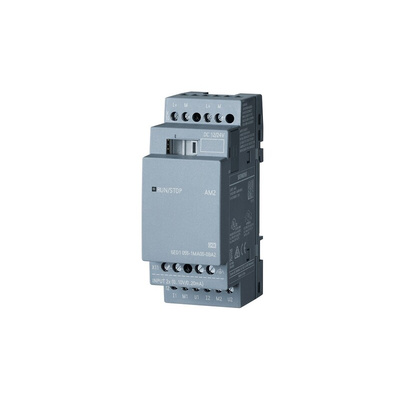

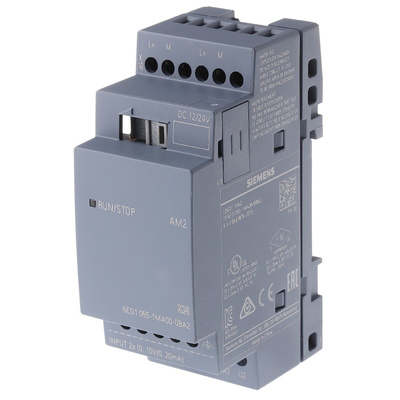

6ED1055-1MA00-0BA2, Siemens LOGO! Expansion Module, 12 → 24 V dc, 2 x Input Without Display, Модуль расширения

Siemens Logic Module

The Siemens LOGO! 8 series logic module has 2 analogue inputs of 0V to 10 V and 4mA to 20 mA. This DIN rail mount logic module has a screw termination method. The logic module has a supply voltage that ranges between 12VDC and 24VDC. It also has a ’text message communication’ function for alerts. The LOGO! CMR module makes it possible to provide control via smartphone. The LOGO! web editor is a new tool used together with a LOGO! base module (BM) and LOGO! soft comfort. This tool helps you create user-defined web pages in the editor pane and visit the whole project through the web server of the LOGO! base module. The data of a logic module can be accessed through the LOGO! access tool V2.0.0.

Features and Benefits

Networking up to 2 times 8 basic devices via Ethernet
Communication with SIMATIC controllers, SIMATIC panels, and PC
No HTML knowledge required
Operating temperature ranges between 0°C and 55°C
’Drag and drop’ programming
Comprehensive customisation

Applications

Build in web server
Datalog
User-defined web page

Certifications

CSA approved
UL approved
CE
FM approved
VDE approved
IP20 rated
