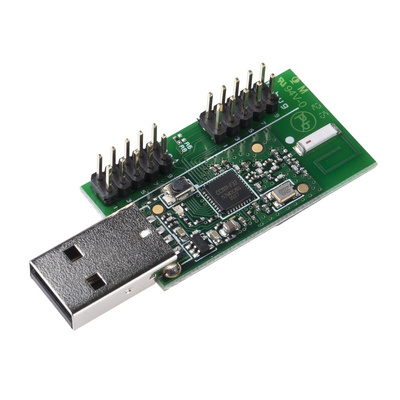

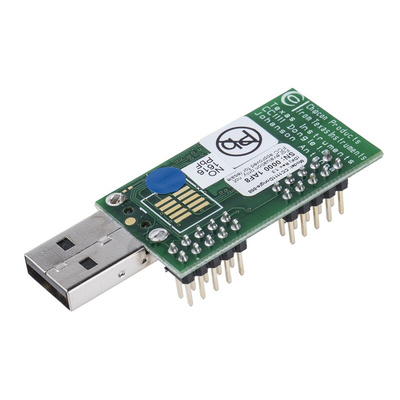

Texas Instruments USB CC1111 RF Transceiver Dongle CC1111EMK868-915

CC1111EMK Evaluation Module Kit, 868/915MHz

The CC1111EMK868-915 kit consists of a USB dongle making it easy to create a wireless connection between a PC and sub-1GHz network radios based on compatible devices like the CC1101, CC1120, CC1110, and CC430. The dongle is pre-programmed as a Packet Sniffer. It can capture packets over-the-air and the sniffer application running on the PC can parse and display the contents.

CC1111F32 Wireless SoC set up for 868/915MHz ISM band operation
USB A connector to PC
10-pin program/debug header
10-pin GPIO header
User LED
User pushbutton
868/915MHz chip antenna

Note

A CC Debugger tool (RS Part No.709-4370) will be required to program and debug software running on the dongle.
