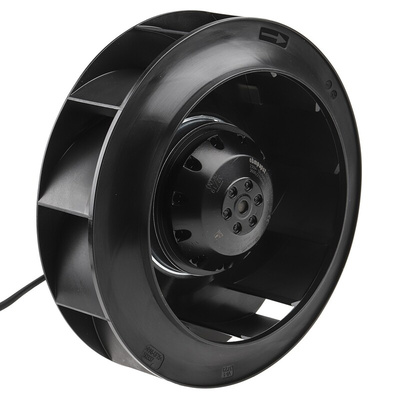

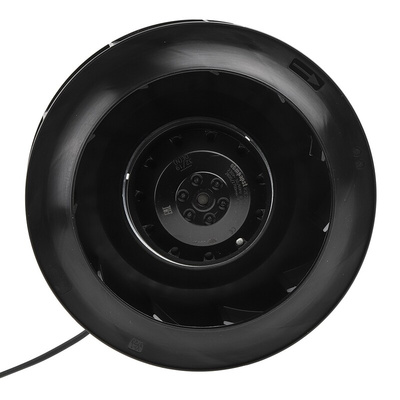

R2E220-AA40-B8, ebm-papst R2E220 Series Centrifugal Fan, 230 V ac, AC Operation, 221.4 (Dia.) x 71 Dmm

ebm-papst Centrifugal Blower

The ebm-papst RadiCal series 230VAC high press development blower is a centrifugal fan with backward curved blades. These are ideal for a wide range of application requirements, mostly suited for intake suction use. Additionally, ebm-papst centrifugal fans and blowers, specifically those used for intake suction using backwards curved blades, do not require a scroll housing. This adds to the ease of use and versatility. The diameter of the fan is 221.4mm and depth of 71mm.

Features and Benefits

Uncoated surface of rotor
Material of impeller is PA6 plastic
Number of blades are 11
Direction of rotation is clockwise
Insulation class "F"
Humidity class F1-2
Operating temperature ranges between -40 °C and 80 °C
Any mounting position
Condensate discharge holes
Operation mode is S1
Ball bearing
Motor protection- thermal overload protector (TOP) wired internally

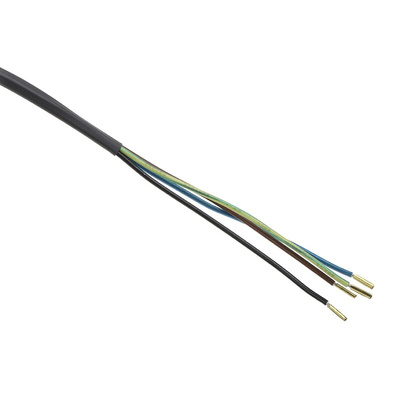

Cable exit variable
Fan speed is 2600rpm
Noise level is 73dB

Applications

Central air conditioning units or building ventilation systems
Automobile
Railway
Electronic products
Medical treatment
Household
Ventilation
Air conditioning
Refrigeration system

Certifications

UL 2111
CSA C22.2 Nr.77
CCC
