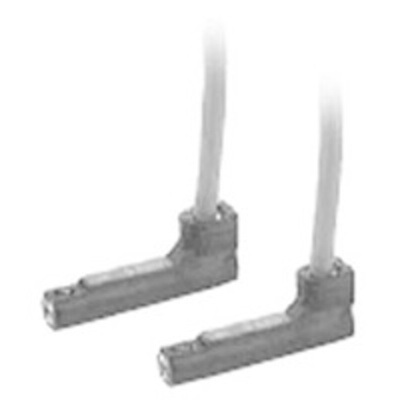

D-A96V, SMC Reed Pneumatic Position Detector, IP67, 4 → 8V dc, Датчик

8262130
Номер производителя: D-A96VПроизводитель: SMC
Цена за шт.
6216.00 руб. (С НДС) *
Количество 5+ 10+
Цена 6027.00 руб. 5835.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

D-A9 Series

The DA-9 series reed switches utilise a magnetic sensor for pneumatic actuators. They come with built in indicator lights and set screws. For extra versatility they are available in both two and three wire options in both in-line and vertical entry configurations.

Possible Applications:

Automotive/Heavy Vehicle
Food/Beverage
Forestry/Paper Products
Material Handling
Packaging
Petroleum/Chemical
Steel
Textile
Electronics
Life Sciences
Resource

Voltage Rating: 5Vdc or 24Vdc
Load current: 50mA or less
Operating time: 1.2ms or less
Durable vinyl sheath cable which is oval shape for added flexibility
Insulation resistance of 50MΩ or more at 500 Vdc
Ambient temperature rating: -10 to 60 °C

Standards

Enclosure: IEC529 criteria IP67, JISC0920

Auto Switches

Техническая спецификация
pdfDatasheet
pdfDatasheet
Напряжение питания:
4 → 8В пост. тока
Производитель - серия:
D-A9
Рабочая температура - максимальная:
+60°C
Рабочая температура - минимальная:
-10°C
Светодиодный индикатор:
Да
Совместимость с:
Size 05, 1 CRJ Series Rotary Actuator, Size 10 to 200 MSQ Series Rotary Actuator, Size 10 to 40 CDRQ2 Series Rotary Actuator, Size 10 to 40 CDRQ2X Series Rotary Actuator, Size 10 to 50 MSQX Series Rotary Actuator, Size 10 to 50 MSZ Series Rotary Actuator,
Степень защиты IP:
IP67
Тип:
Reed
