Aim-TTi PSA3605USC Handheld Spectrum Analyser, 10 MHz → 3.6 GHz, Анализатор спектра

Aim-TTi Spectrum Analyser

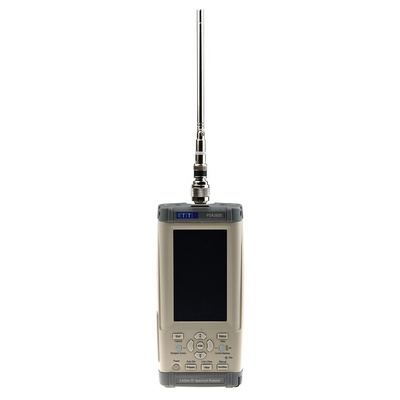

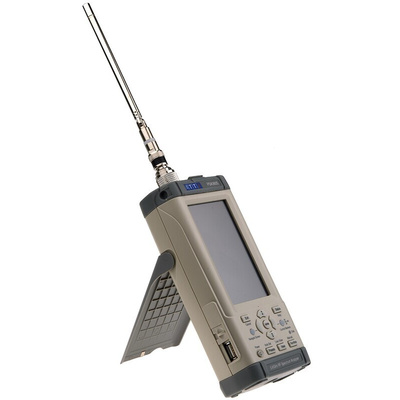

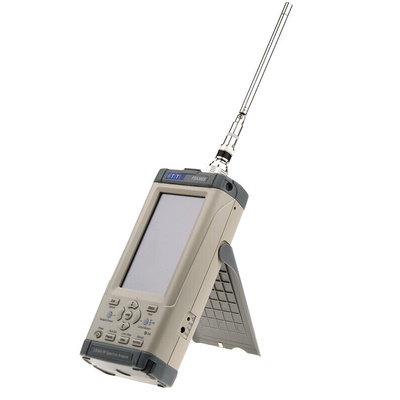

The Aim-TTi spectrum analyser operates on the frequency ranging from 10MHz to 3.6Ghz. This analyser is compact, lightweight and offers performance as good as a benchtop analyser. It has several features like removable screen protector, rubberised buffer top and bottom to resist knocks and scratches, Li-ion rechargeable battery operation provides more than 3 hours of continuous operation which enhance its use in the field. For benchtop operation, it can be powered from the AC adaptor, which recharges the batteries within three hours. It also has a USB host connector, which enables USB Flash devices to be connected to the analyser and direct connection to a PC for bi-directional file transfer.
Supplied with

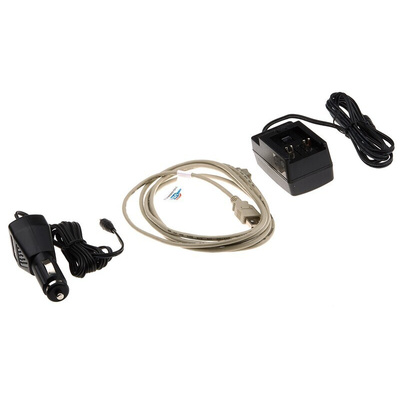

universal voltage mains adaptor/charger, USB connection lead, spare stylus, BNC converter for trigger input, multi-language short guide, full user manual (English only), supporting CD containing PDF versions of manuals and support software (PSA3605 & PSA6005) plus (PSA3605USC & PSA6005USC only) firmware upgrade U02 (pre-installed), telescopic antenna PSA-ANT2, vehicle charger PSA-VC & fitted case PSA-SC2.

Features and Benefits

Typical noise floor of -120dBm at -40dBm ref level/10kHz RBW
4.3in colour backlit TFT display with touchscreen
Trace modes of normal, single, peak hold and average
Zero span mode with AM and FM demodulation
Live, View and Reference traces in contrasting colours
Twin markers with readout of absolute and difference values
Measurement in different units like dBm or dBuV, mV or uW
Smart marker movement with selectable peak tracking
Frequency counter with down to 10Hz resolution
Auto-find automatically sets sweep parameters for the highest signal found
Unlimited storage for waveforms, set-ups and screens
User-assignable file names, file stamping from real-time clock
USB interfaces for Flash drives and PC connection
Comprehensive status and context sensitive help screens
More than 3 hours continuous operation from a charge
Length is 49mm, width is 92mm and height is 192mm

Applications

Telecommunication
Electronics laboratories
Educational institutes
Electronics designing
Service and maintenance

Certifications

EN61010-1
EN61326
