7980000, Rittal Fan Expansion Kit

Rittal TS IT Fan Trays

Fan Tray

For active ventilation
Fits the cut-out integrated into the roof plate
The unit may optionally be extended with additional fans
Technical specifications of thermostat: rated operating voltage 250 V, temperature range +5 °C to +55 °C
Refer to Fan Expansion Kit for technical specifications of single fan
Grey (RAL 7035) finish

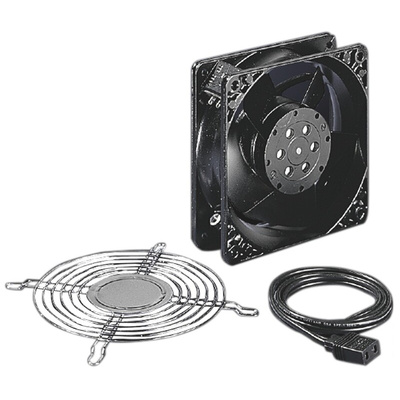

Fan Expansion Kit

Rated operating voltage 230 V, 1∼, 50 Hz/60 Hz
Power consumption: 15 W at 50 Hz, 14 W at 60 Hz
Noise level: 37 dB(A) at 50/60 Hz
Temperature range: -10 °C to +55 °C
Dimensions: 119 x 119 x 38 mm

Rittal Fan Unit, For Use With TS IT Series, 0.7kg Weight - 7980000

For effective climate control in your server rack, use this fan unit from Rittal. It's designed for use with cabinets in the TS IT series for ease of assembly. Its air throughput of 160m³/h at 50Hz provides powerful cooling, helping to regulate the temperature of your IT equipment to prevent damage caused by overheating. Thanks to its low power consumption of 15W, this fan is an energy-efficient choice.

Features & Benefits

• Compact dimensions of 119 (height) x 119 (width) x 38mm (depth) to take up minimal space in your cabinet
• Cable length of 0.61m for a flexible connection
• Wide operating temperature range of -10°C to +55°C for use in harsh environments

Applications

• Data and communication centres
• Industrial control systems
• Telecommunication networks

How loud is this fan?

This fan has a low sound output of 37dB to ensure quiet operation.

Certificate of Compliance

7980000 Data Sheet
