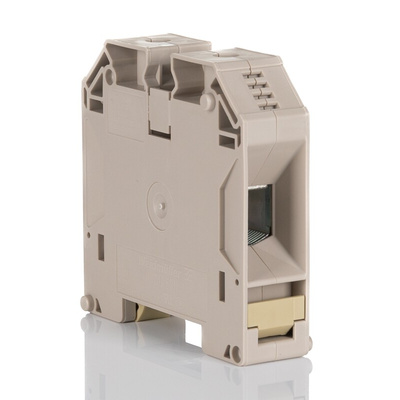

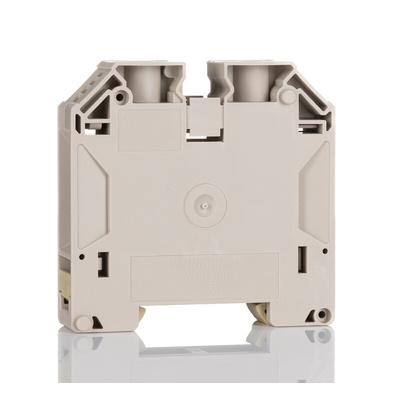

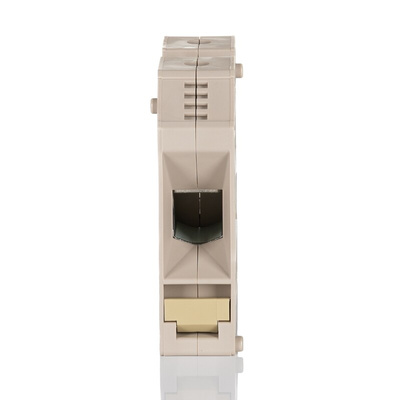

1820840000, Weidmuller W Series Dark Beige Feed Through Terminal Block, 70mm², Single-Level, Screw Termination

Weidmuller Feed-Through Terminal Block, 8 to 0AWG Wire Size Range, 150A Current Rating - W Series - WDU 50N -1820840000

Need a way to protect and connect the wiring in your electrical setup? This feed-through terminal block from Weidmuller covers all your bases. It has closed sides to protect your cables from interference and keep a lid on dust and moisture. The product is an ideal choice for high-power applications thanks to its hefty voltage rating of 1kV. This component's screw terminals offer a simple and secure wiring solution to prevent you from going around the twist during installation.

Features & Benefits

• Safe for use in explosive environments
• Self-extinguishing for safety in the event of a fire
• Wemid housing offers resistance to impact, heat and abrasion for long-term performance
• Compact dimensions of 70 (H) x 18.5 (W) x 69.6mm (D) for installation in tight areas

Applications

• Industrial automation
• Robotics
• Sensors and motors

How environmentally friendly is this product?

This component is free from harmful elements like cadmium and halogen, making it a greener choice.

What temperatures can this block withstand?

It has a wide operating temperature range between -50°C and +120°C, so it's suitable for use in demanding industrial settings.

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
