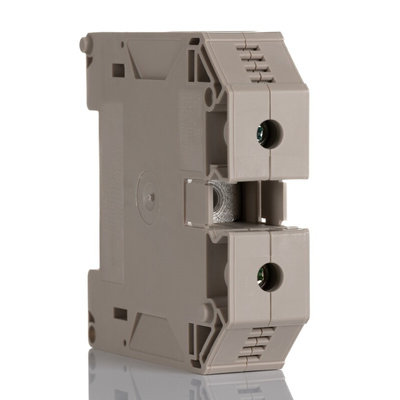

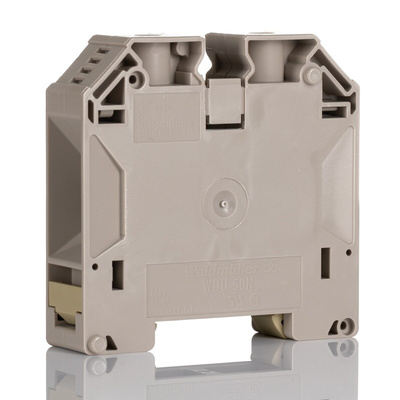

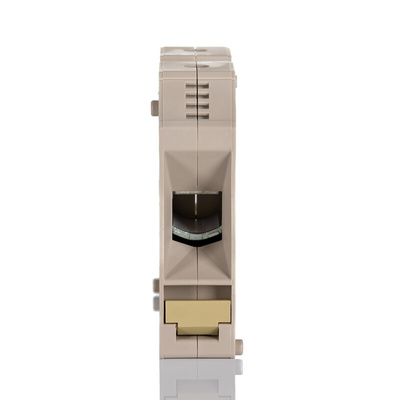

1186630000, Weidmuller W Series Dark Beige Feed Through Terminal Block, 10 → 70mm², 1-Level, Screw Termination

Weidmuller Feed-Through Terminal Block, DIN Rail Mounting, Screw Termination Method - W Series - 1186630000

Ensure neat and tidy connections in your electrical system with this feed-through terminal block from Weidmuller. It's a breeze to wire up by threading one wire into each of its two terminals, then tightening the screws to create a secure connection. As it clips onto a DIN rail, you can install it in a snap. Thanks to its small size of 70 (H) x 18.5 (W) x 69.6mm (D), it won't clutter your setup.

• Wemid body is resistant to impact and abrasion
• Current rating of 150A for use in powerful electrical systems
• Accepts stranded wires in a broad cross-section range between 10 and 70mm², so it's a versatile piece of kit

Applications

• Industrial power supplies
• Automation and control networks
• Electrical installations

How much does this unit weigh?

This terminal block has a light net weight of 81.3g, so it places minimal strain on your rail.

Is this component suitable for use in harsh work areas?

Yes. Thanks to its broad operating temperature range between -60°C and +130°C, it stands up to challenging industrial conditions.

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
