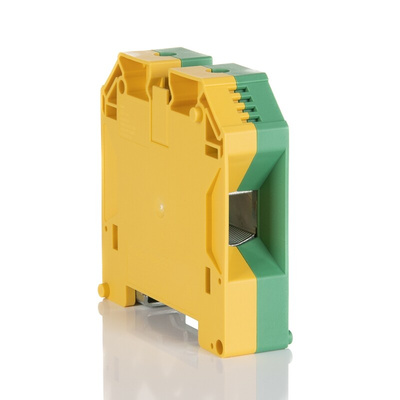

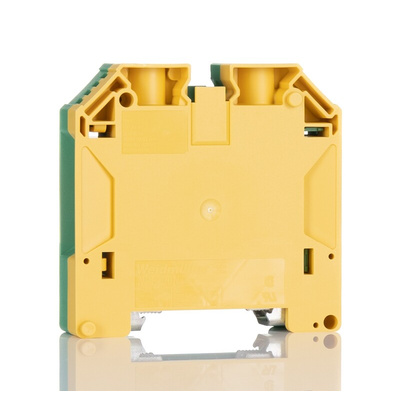

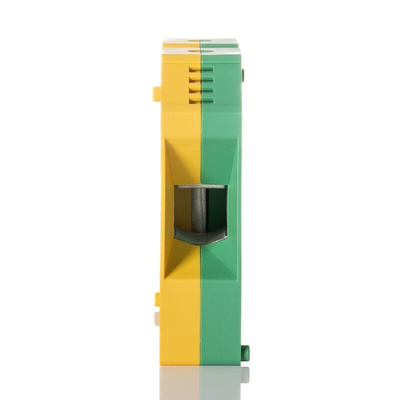

1846040000, Weidmuller W Series Green, Yellow DIN Rail Terminal Block, 50mm², Single-Level, Screw Termination

Weidmuller DIN Rail Terminal Block, Wemid Housing Material, 14 to 0AWG Wire Size Range - W Series - WPE 50N -1846040000

Block out pesky overcurrents in a jiffy with this DIN rail terminal block from Weidmuller. It stops short circuits from passing through your terminals to protect your setup against damage. Installation is a cinch, as it simply clips onto your rail without the need for any tools. The self-extinguishing Wemid housing calls a halt to fire before it can spread. As it accepts wire sizes between 14 and 0AWG, it's a versatile piece of kit.

Features & Benefits

• Broad operating temperature range between -50°C and +130°C for use in demanding industrial environments
• Green and yellow colour makes it easy to identify in a colour-coded setup
• Screw terminals for a secure electrical connection without the need for special tools
• Light weight of 126.143g to place minimal strain on your rail

Applications

• Energy management
• Telecommunication networks
• Heating and cooling systems

How large is this terminal block?

This terminal block has compact dimensions of 71 (H) x 18.5 (W) x 69.6mm (D), so it takes up minimal space on your rail.

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
