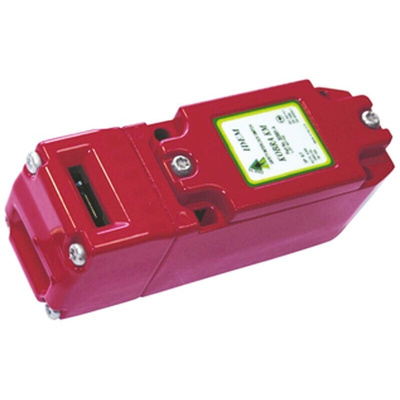

203001, IDEM KM Safety Interlock Switch, Die Cast Metal, 2NC/1NO, Выключатель

8263912
Номер производителя: 203001Производитель: IDEM
Цена за шт.
13887.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

IDEM Kobra Metal Safety Interlock Switches

The Kobra KM series from IDEM are tongue operated safety interlock switches that fit to the leading edge of sliding, hinged or lift off machine guards. These safety switches have positively operated switching contacts and a strong tamper resistant key mechanism designed to provide robust position interlock detection for moving guards.
Depending upon the risk assessment for the application, the Kobra KM can be used independently to provide positively operated contacts to EN60947-5-1 or can be used in combination with any dual channel safety monitoring relays to provide up to Category 4 PLe ISO13849-1 or SIL3 EN62061. A choice of contact blocks and various actuators are available to aid installation and maintain durability.

Positive break contacts to IEC 60947-5-1
High functional safety to ISO 13849-1
Contact blocks can be replaced
8 actuator entry positions
Rotatable heads have dual actuator entry
Robust diecast aluminium housing
3 or 4 pole contact blocks 2NC / 1NO or 3NC / 1NO
1 conduit entry point M20
Industry standard - 30mm fixing centres
Housing: 40 x 118 x 43.5mm

Note

826-3915 is supplied with a flat actuator, 826-3912 is supplied without an actuator. Standard, flat, plastic flexible, heavy duty flexible and hygienic actuators are available separately. The flexible actuators are perfect for tight radius guards. The hygienic actuator is made from stainless steel with a mirror polished finish.

Standards

EN1088, IEC 60947-5-1, EN60204-1, ISO 13849-1, EN62061, EN954-1, UL508.

Approvals

CE, cULus, TUV.

Interlock Switch

Техническая спецификация
pdf102510 KM Data Sheet
pdfIDEM Safety Switches Video
pdfInterlock Safety Switches (KP, KM, KM-SS, K-SS) Datasheet
pdfMachine Guarding and Safety Range Overview
Безопасные контакты:
2NC
Вспомогательные контакты:
1NO
Глубина:
43.5мм
Диапазон:
Kobra
Длина:
118мм
Количество начальных направлений:
4
Максимальное напряжение переменного тока:
240В
Максимальный ток:
10 A
Материал корпуса:
Литой металл
Нормальное состояние конфигурации:
2NC/1NO
Рабочая температура - максимальная:
+80°C
Рабочая температура - минимальная:
-25°C
Размеры:
118 x 40 x 43.5 мм
Серия:
KM
Соединение - тип:
M20
Степень защиты IP:
IP67
Стиль блокировки:
Key
Ширина:
40мм
