200001-SS, IDEM KP Safety Interlock Switch, Polyester, 2NC/1NO, Выключатель

8263928
Номер производителя: 200001-SSПроизводитель: IDEM
Цена за шт.
12858.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

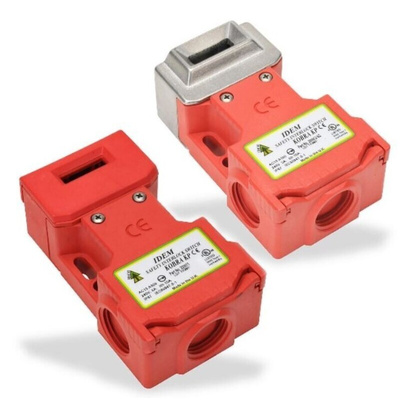

IDEM Kobra Plastic Safety Interlock Switches

The Kobra KP series from IDEM are tongue operated safety interlock switches that fit to the leading edge of sliding, hinged or lift off machine guards. These safety switches have positively operated switching contacts and a strong tamper resistant key mechanism designed to provide robust position interlock detection for moving guards.
Depending upon the risk assessment for the application, the Kobra KP can be used independently to provide positively operated contacts to EN60947-5-1 or can be used in combination with any dual channel safety monitoring relays to provide up to Category 4 PLe ISO13849-1 or SIL3 EN62061. A choice of contact blocks and various actuators are available to aid installation and maintain durability.

Positive break contacts to IEC 60947-5-1
High functional safety to ISO 13849-1
Contact blocks can be replaced
4 actuator entry positions
Rotatable heads
Polyester housing
Stock nos. 826-3928 and 826-3937 have stainless steel heads
3 or 4 pole contact blocks 2NC / 1NO, 3NC / 1NO or 4NC
3 conduit entry points M20
IP67 protection
Industry standard - 40mm fixing centres
Housing: 52 x 98 x 40mm

Note

Only stock no. 826-3925 is supplied with a flat actuator. Standard, flat, plastic flexible, heavy duty flexible and hygienic actuators are available separately. The flexible actuators are perfect for tight radius guards. The hygienic actuator is made from stainless steel with a mirror polished finish.

Standards

EN1088, IEC 60947-5-1, EN60204-1, ISO 13849-1, EN62061, EN954-1, UL508.

Approvals

CE, cULus, TUV.

Interlock Switch

Техническая спецификация
pdfIDEM Safety Switches Video
pdfInterlock Safety Switches (KP, KM, KM-SS, K-SS) Datasheet
pdfMachine Guarding and Safety Range Overview
Безопасные контакты:
2NC
Вспомогательные контакты:
1NO
Глубина:
34.5мм
Диапазон:
Kobra
Длина:
100.4мм
Количество начальных направлений:
4
Максимальное напряжение переменного тока:
240В
Максимальный ток:
10 A
Материал корпуса:
Полиэстер
Нормальное состояние конфигурации:
2NC/1NO
Рабочая температура - максимальная:
+80°C
Рабочая температура - минимальная:
-25°C
Размеры:
100.4 x 58 x 34.5 мм
Серия:
KP
Соединение - тип:
M20
Степень защиты IP:
IP67
Стиль блокировки:
Key
Ширина:
58мм
