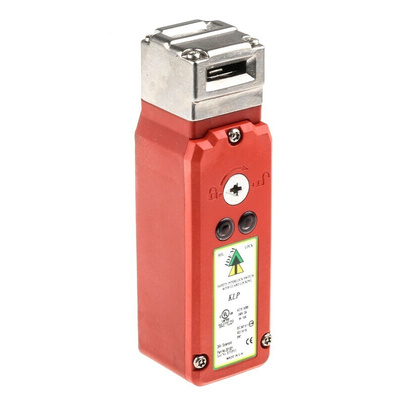

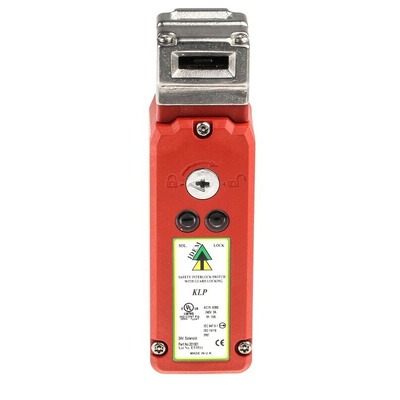

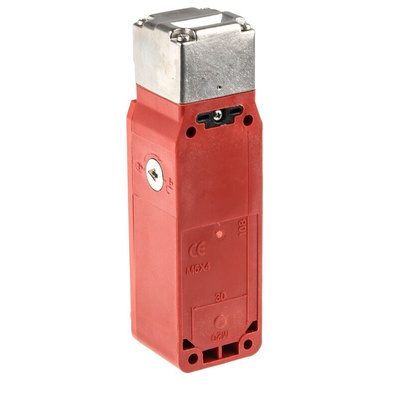

201001, IDEM KLP Series Solenoid Interlock Switch, Power to Unlock, 24V ac/dc

IDEM Solenoid Interlock Switch

The IDEM KLP series guard locking safety interlock switch has a supply voltage rating of 24VAC/VDC. It has 2NC safety contact and 2NO auxiliary contacts. This switch fits the leading edge of sliding or hinged machine guards. It provides a locking mechanism to keep the guard closed until the hazard is removed. This switch is tongue operated with positively operated switching contacts and a strong tamper-resistant key mechanism. It provides robust position interlock detection for moving guards. This solenoid interlock switch can be used with safety timers to provide a delay before allowing the guard to open (for example machines that require a rundown). Depending on the risk assessment for the application, it can be used independently to provide positively operated contacts or used with any dual channel safety-monitoring relay.


Note
Not supplied with an actuator. Standard, flat, heavy-duty flexible and hygienic actuators are available separately. The flexible actuators are perfect for tight radius guards. The hygienic actuator is made from stainless steel with a mirror-polished finish.

Features and Benefits

Power to unlock
2 lock monitoring safety contacts for high function and diagnostic specification
2 emergency manual release points
Positive break contacts
High functional safety
Connects to most of the safety relays
1 conduit entry point M20
LED to indicate lock status
High holding force of 1800N
8 actuator entry positions
Red plastic body and stainless steel head
Rotatable head
30mm fixing centres

Applications

Food processing
Pharmaceutical industry
Packaging
Petrochemical industry

Certifications

IP67 rated
PLe Cat.4
EN1088
IEC 60947-5-1
EN60204-1
ISO 13849-1
EN62061
EN954-1
UL508. approved
CE certified
UL approved
TUV certified
