205001, IDEM KL3-SS Series Solenoid Interlock Switch, Power to Unlock, 24V ac/dc

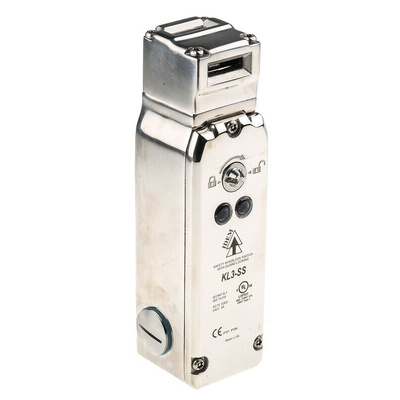

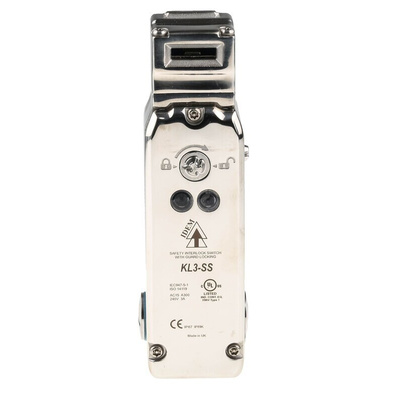

IDEM Solenoid Interlock Switch

The IDEM KL3-SS series guard locking safety interlock switch has a supply voltage rating of 24VAC/VDC. It has 4NC safety contacts and 1NO auxiliary contact. This switch fits the leading edge of sliding or hinged machine guards. It provides a locking mechanism to keep the guard closed until the hazard is removed. This switch is tongue operated with positively operated switching contacts and a strong tamper-resistant key mechanism. It provides robust position interlock detection for moving guards. This solenoid interlock switch can be used with safety timers to provide a delay before allowing the guard to open (for example machines that require a rundown). Depending on the risk assessment for the application, it can be used independently to provide positively operated contacts or used with any dual channel safety-monitoring relay.

Note
Not supplied with an actuator. Standard, flat, heavy-duty flexible and hygienic actuators are available separately. The flexible actuators are perfect for tight radius guards. The hygienic actuator is made from stainless steel with a mirror-polished finish.

Features and Benefits

Power to unlock

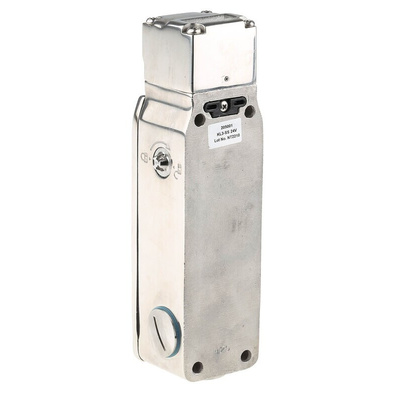

Rear manual release button
Stainless steel 316 body and head
2 lock monitoring safety contacts for high function and diagnostic specification
2 emergency manual release points
Positive break contacts
High functional safety
Rotatable head
Connects to most safety relays
3 conduit entry points M20
LED status of solenoid applied power
High holding force of 2000N
8 actuator entry positions
30mm fixing centres

Applications

Food processing
Pharmaceutical industry
Packaging
Petrochemical industry

Certifications

IP69K rated
PLe Cat.4
EN1088
IEC 60947-5-1
EN60204-1
ISO 13849-1
EN62061
EN954-1
UL508. approved
CE certified
UL approved
TUV certified
