113006, IDEM CPR Series Magnetic Non-Contact Safety Switch, 250V ac, Plastic Housing, 2NC, M12, Выключатель

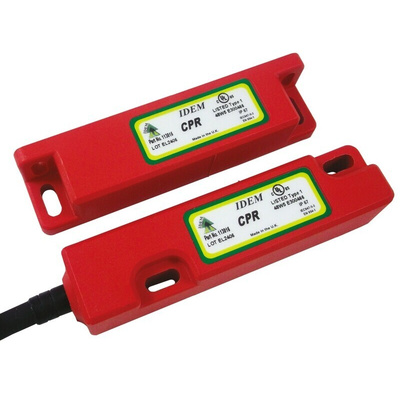

IDEM IDEMAG CPR Non Contact Safety Switch

The IDEMAG CPR safety switch has been developed for non-contact interlocking of hinged, sliding or removable guard doors.
It is ideal for applications that require a wide tolerance to misalignment, high switching capacity or high level of hygiene.
When used with a dual channel safety relay, this safety switch can be used to provide up to PLe/Category 4 to ISO13849-1.

Features and Benefits

Magnetic high-power switching
Dual channel safety outputs
Plastic high specification polyester housing
High temperature stability up to 80°C
High tolerance to guard misalignment
Resistant to many organic and inorganic chemicals
IP69K protection
Resistant to high temperature hosing and detergent wash down
Conformance to EN60947-5-3 PDF-S
Up to PLe ISO 13849-1
Slim fitting suitable for all industry applications
Easy to install within narrow frame structures
Operates from two sides for ease of applications
12 mm wide sensing
Switching capacity 1 A
55 & 73 mm fixing centres

Applications

The IDEMAG CPR Non-contact Safety Switch is designed for use in general factory automation, packaging and some food processing industries.

Note

The normally closed (NC) circuits are closed when the guard is closed and the actuator is present.

Standards

EN1088 (ISO 14119), EN 60947-5-1, EN 60204-1, ISO 13849-1, EN 62061, UL 508.

Approvals

CE, cULus, TUV.

Supplied with

Actuator.
