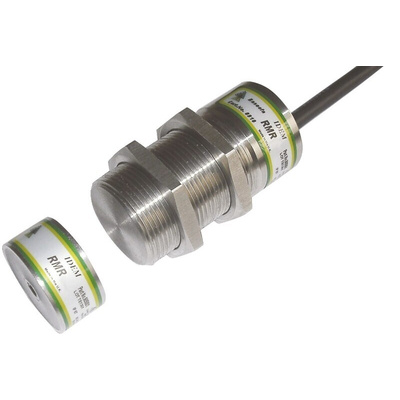

134013, IDEM RMR Series Magnetic Non-Contact Safety Switch, 24V dc, 316 Stainless Steel Housing, 2NC, 2m Cable, Выключатель

IDEM HYGIEMAG RMR Non Contact Safety Switches

The HYGIEMAG RMR safety switch has been developed for non-contact guard door interlocking of hinged, sliding or removable guard doors. It is ideal for applications that require a wide tolerance to misalignment, a high switching capacity or high levels of hygiene. When used with dual channel safety relays, the RMR safety switch can be used to provide up to PLe/Category 4 to ISO13849-1 protection.

Features and Benefits

Magnetic high-power switching
Dual channel safety outputs
Stainless steel 316 housing
High temperature stability up to 105°C
Can be mounted on steel structures
High tolerance to guard misalignment
IP69K protection
Conformance to EN60947-5-3 PDF-S
Up to PLe ISO 13849-1
Cylindrical fitting suitable for all industry applications
Suitable for some food contact zones
Easy to install M30 threaded body - easy to set
2NC / 1 NO
10 mm wide sensing
Switching capacity 0.5 A
Housing: 60 x Ø30 mm (M30 x 1.5 mm)

Applications

The HYGIEMAG RMR non-contact safety switch is ideal for the food processing, pharmaceutical, packaging and chemical industries.

Note

The normally closed (NC) circuits are closed when the guard is closed and the actuator is present.

Standards

EN1088 (ISO 14119), EN 60947-5-1, EN 60204-1, ISO 13849-1, EN 62061, UL 508.

Approvals

CE, cULus, TUV.

Supplied with

Actuator.
