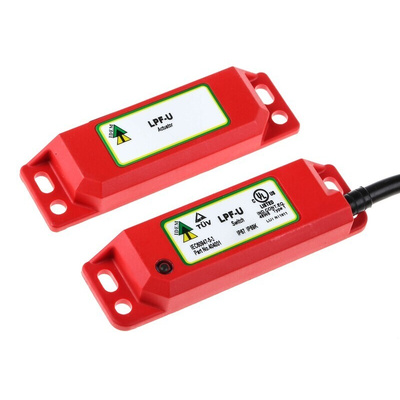

404001, IDEM LPF-RFID-U Series Magnetic, RFID Non-Contact Safety Switch, 24V dc, Plastic Housing, 2NC, 2m Cable, Выключатель

IDEM Non-Contact Switch

The IDEM LPF-RFID series non-contact safety switch has a switching distance of 10mm when closed and 20mm when opened. It has 2NO safety and 1NO auxiliary contacts. It is developed to provide and maintain a high level of functional safety whilst providing a very high anti-tamper coded activation. It has coding that is achieved by using magnetic and RFID techniques and both principles need to be satisfied for the switch to operate safely. It provides a tamper-resistant operation when the actuator is in the sensing range of the switch. This non-contact safety switch has a plastic housing.
Supplied with:
Actuator.
Note:
The normally closed (NC) circuits are closed when the guard is closed and the actuator is present.

Features and Benefits

Input supply voltage is 24VDC
Uniquely coded and master coded
RFID coded actuation to provide high tamper proof interlock security on guard doors
Unique RFID or series coding RFID available and dependent upon user risk assessment
Connects to most safety relays to maintain PLe/Cat4
Connect up to 20 switches in series

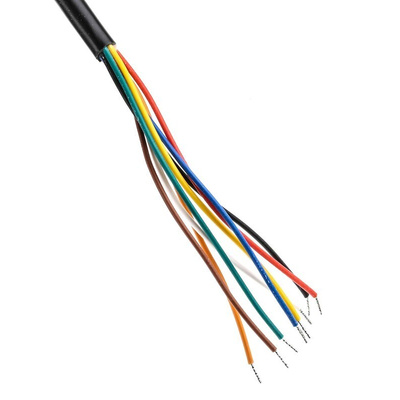

Supplied fitted with a 2m PVC cable
Ability to connect other switches and E-Stops in series
High functional safety
Diagnostic green LED -indication of safety circuits closed
No moving parts -high switch life,-resistant to shock and vibration
Quick connect (QC-M12) and cable versions available
78mm fixing centres

Certifications

EN1088
EN60947-5-3
EN60204-1
ISO13849-1
EN62061
EN954-1
UL508 approved
CE certified
cULus approved
TUV certified
